3D Adjustable Hidden Door Hinge for Slim Frame Doors
3D adjustable concealed door hinge designed for hidden doors, slim frame doors and modern interior door systems. The concealed structure keeps the hinge out of sight when the door is closed, while three-dimensional adjustment helps installers fine-tune door alignment after installation.
- 3D Adjustable Alignment
- Fully Concealed Design

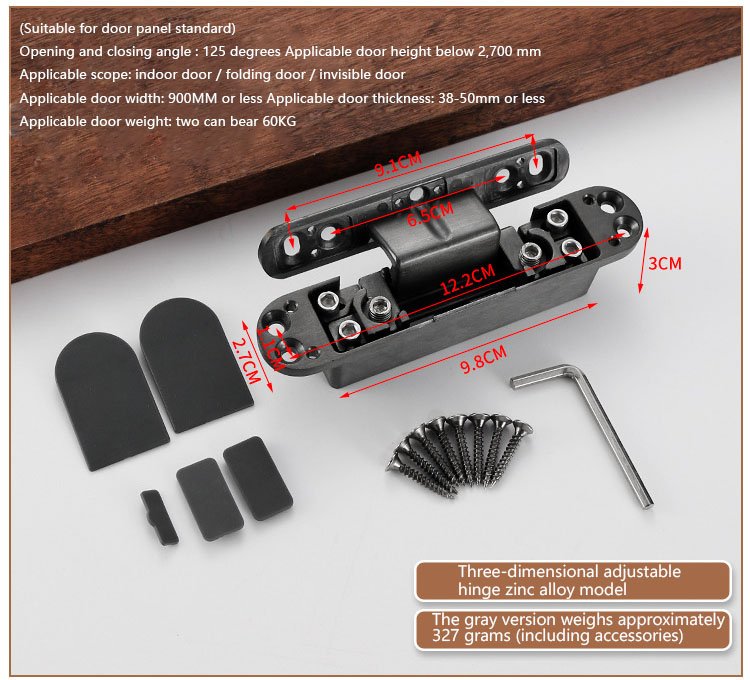

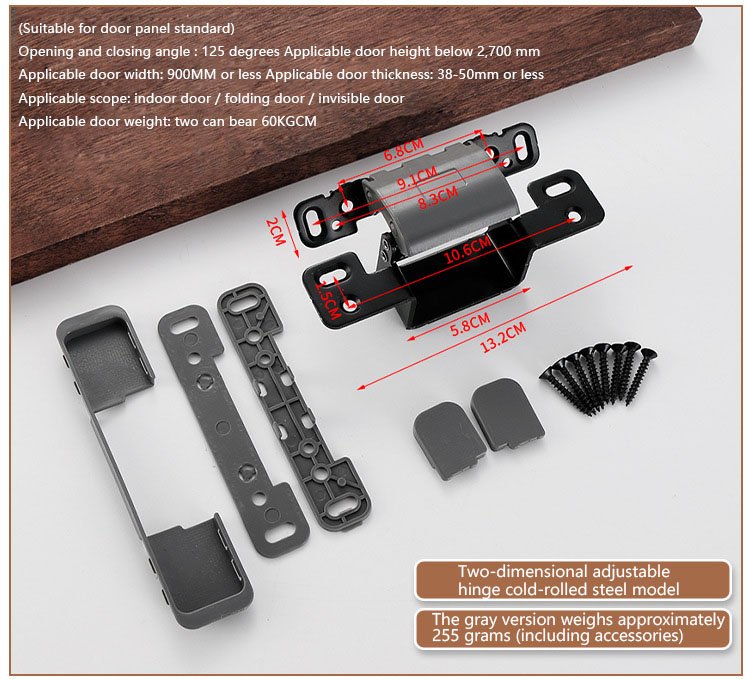

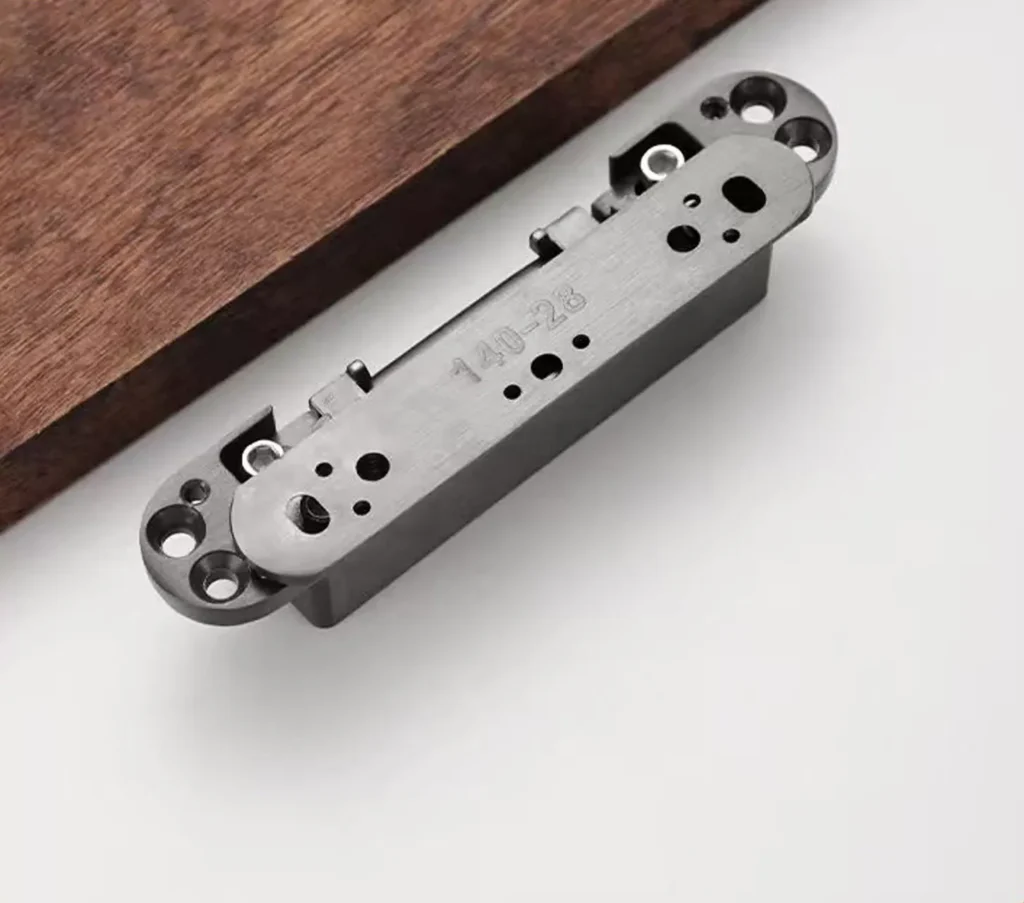

- 133 × 30 / 140 × 28 mm Options
- For Slim Frame & Hidden Doors
PRODUCT SPECIFICATIONS
Additional Material
Cold Rolled Steel
Adjustment
3D Adjustable
Available Sizes
133 × 30 mm / 140 × 28 mm
Finish Options
Black / Gunmetal Gray / Silver / Antique Bronze / Champagne
Installation
Concealed / Mortise Mounted
Reference Weight
Approx. 300 g
Actual dimensions, weight and finish availability may vary according to model and configuration.
For project orders, please confirm door dimensions, frame profile, installation space and load requirements before selecting the final hinge.
CONCEALED HINGE VS STANDARD BUTT HINGE
Limited / Installation Dependent
Installation
Routed / Concealed
Traditional Mortise
Appearance
Minimal / Flush
Traditional Hardware Appearance
Installation Precision
Higher Requirement
More Conventional
Typical Application
Hidden / Slim Frame / Modern Doors
A concealed hinge is usually selected when appearance, door alignment and hidden hardware are project priorities.
A standard butt hinge can be more suitable where conventional installation and simple hardware replacement are the main requirements.
