Spring Loaded Door Hinge with 90° Hold Open for Wooden Doors
This 4-inch spring loaded door hinge combines 90° hold-open positioning, automatic spring return and damped closing in one compact hinge structure. Available in stainless steel and cold rolled steel configurations with multiple surface finishes for interior wooden door applications.
- 90° Hold-Open Positioning
- Automatic Spring Return
- Damped Closing Action
- Stainless Steel & Steel Options
PRODUCT SPECIFICATIONS
Spring Loaded Door Hinge with 90° Hold Open
Spring Loaded / Self-Closing Door Hinge
Model
TN Multifunction Spring Positioning Hinge
4 Inch
100 × 65 mm
Leaf Thickness
1.5 mm
Material Options
Stainless Steel / Cold Rolled Steel
Main Functions
90° Hold-Open / Spring Return / Damped Closing
Surface Treatment
Polished / Electroplated / Spray Coated
Finish Options
Stainless Steel / Matte Black / Satin Silver / Brass / White Zinc / Rainbow Zinc
Installation
Screw Mounted
Packaging
Protective Bag + Mounting Screws
Application
Interior Wooden Doors / Hidden Wooden Doors
Bulk Supply
Available
Specifications and finish availability vary according to material configuration. Please confirm the required material, finish and application before ordering.
For project orders, providing door dimensions and approximate door weight is recommended before model confirmation.
3-IN-1 DOOR CONTROL FUNCTION
One hinge integrates three practical door-control functions: temporary 90° hold-open positioning, spring-assisted automatic return and controlled damped closing.
90° Hold-Open
Keeps the door positioned around 90° when temporary open access is required.
Automatic Spring Return
The integrated spring mechanism helps return the door toward the closed position after release.
Damped Closing
The damping structure helps control the final closing movement for smoother operation.

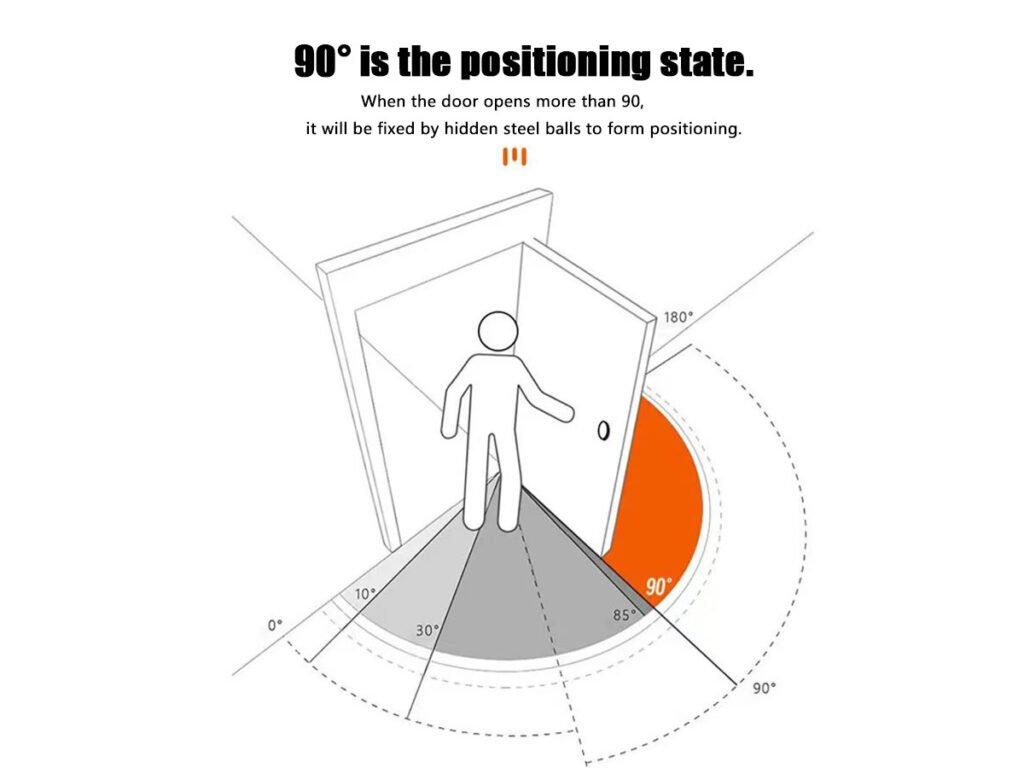

90° HOLD-OPEN POSITIONING
The integrated positioning structure allows the door to remain open around the 90° position when temporary access is required.
- Convenient Temporary Hold-Open
- Integrated Hinge Function
- No Separate Door Holder Required for Suitable Applications
- Automatic Return After Release
Exact hold-open behavior may vary according to door installation and hinge configuration.
PRODUCT DETAILS
Key structural details are designed to support stable spring return, positioning and adjustment during everyday door operation.

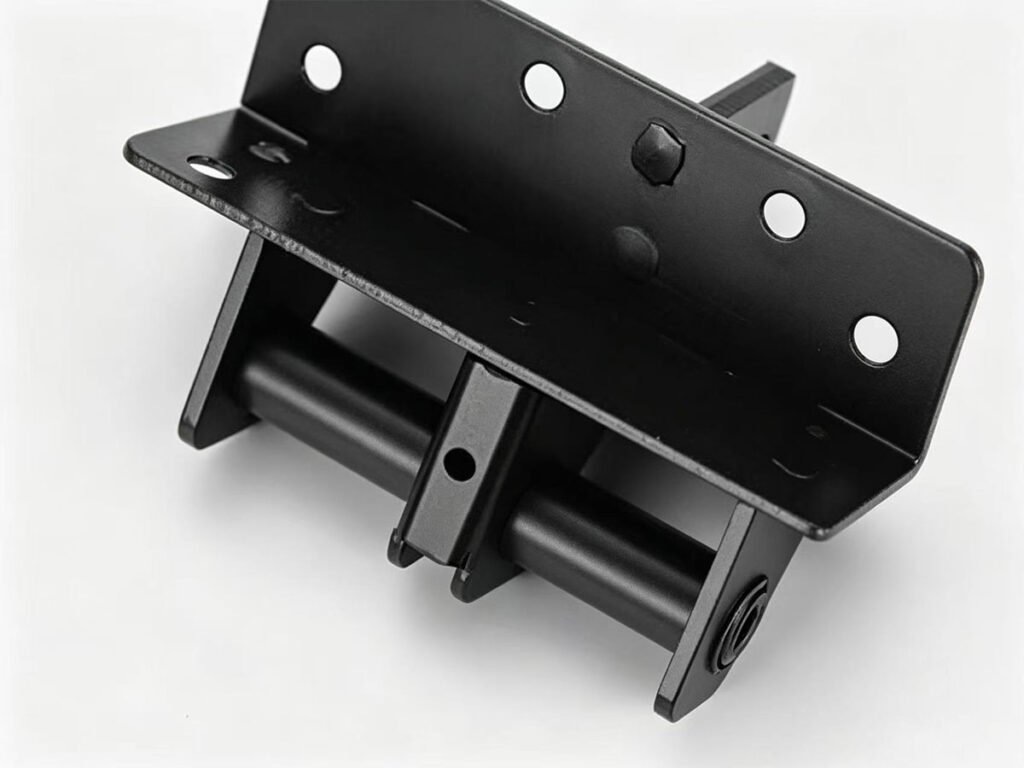

Reinforced Hinge Structure
Thickened structural sections help provide a more stable connection around the main hinge mechanism.

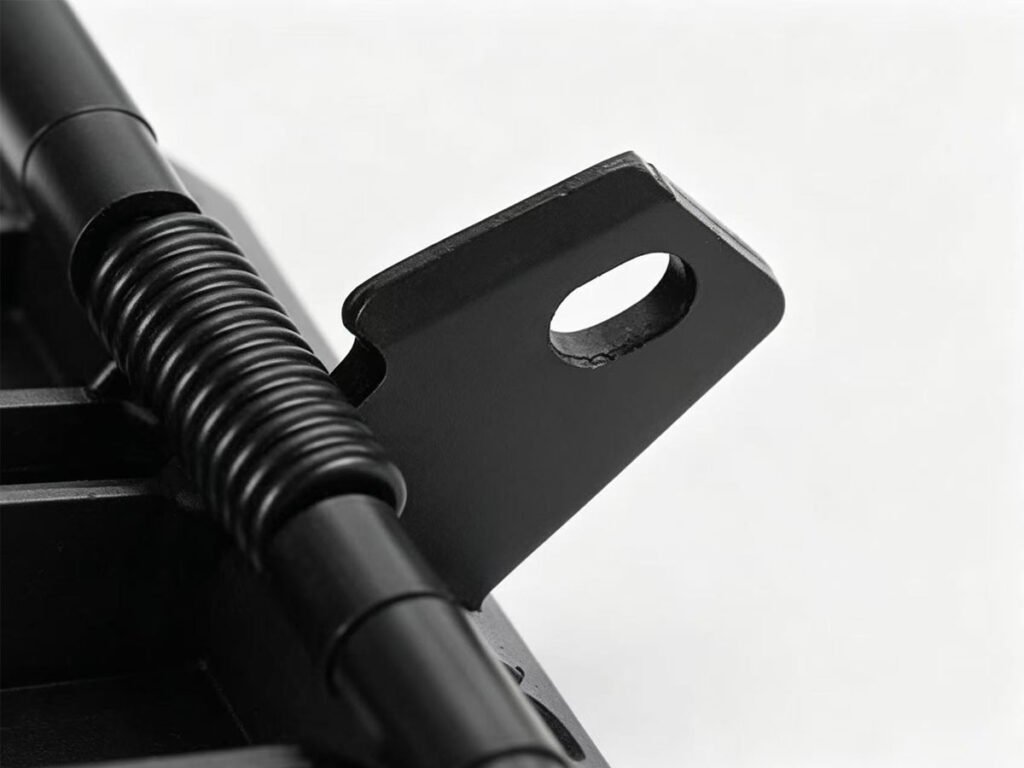

Reinforced Spring Mechanism
The integrated spring mechanism provides the restoring force for automatic door return, with reinforced support around the moving joints.

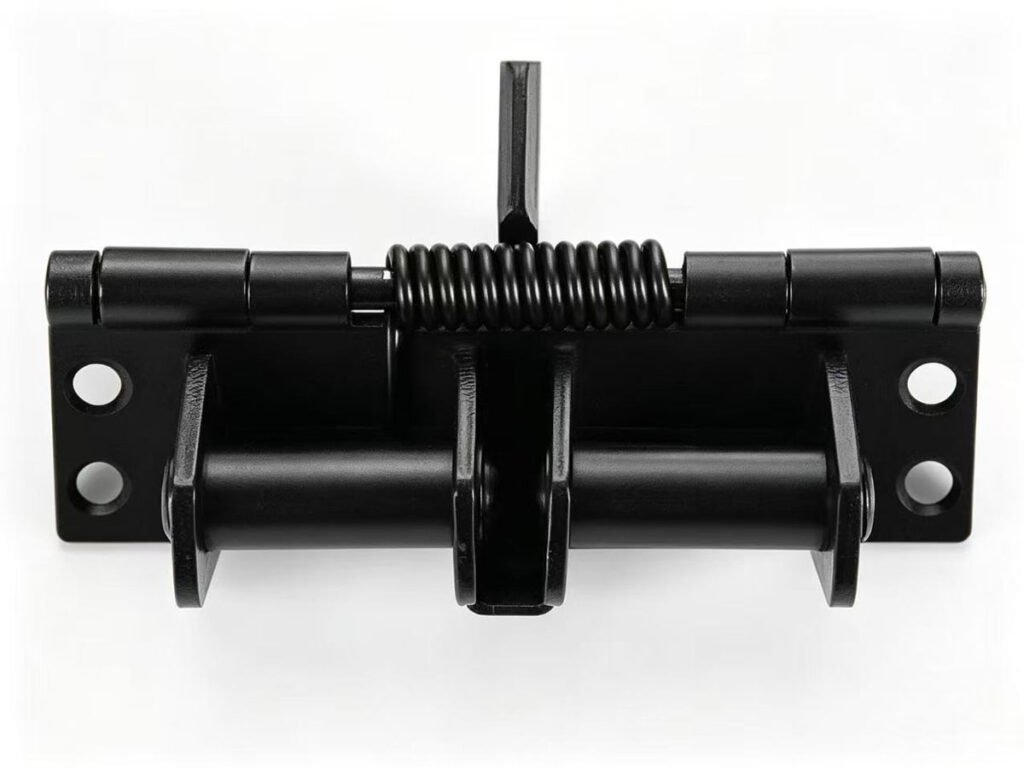

Positioning Slot Design
The positioning slot works with the hinge mechanism to support the hold-open and controlled closing functions.

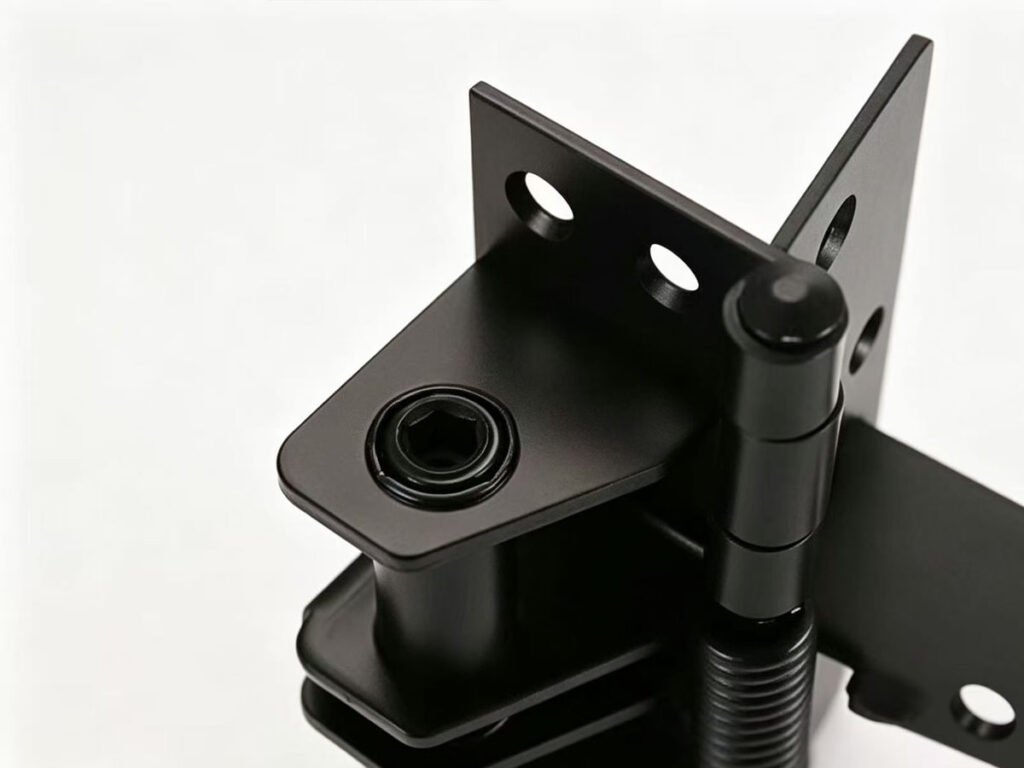

Adjustment Valve Design
The integrated adjustment point allows the hinge mechanism to be fine-tuned according to installation and door-operation requirements.

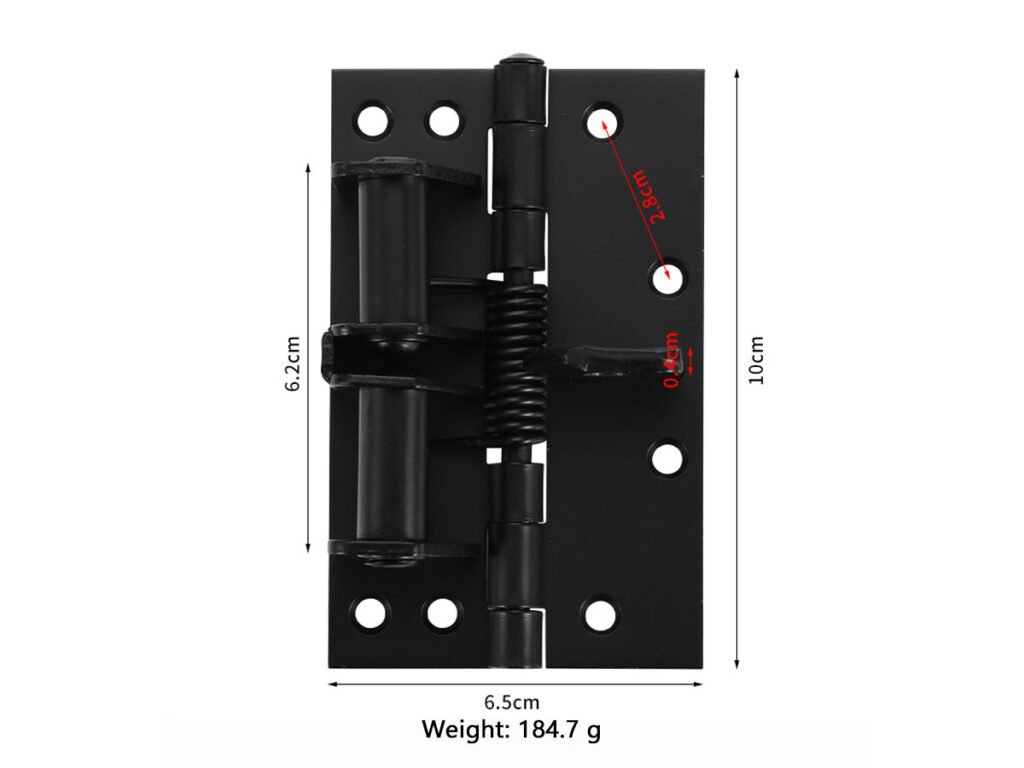

TECHNICAL DIMENSIONS
Confirm the installation dimensions before ordering or project installation.
Nominal Size
4 Inch
Overall Height
100 mm
Overall Width
65 mm
Closer Body Length
Approx. 62 mm
Leaf Thickness
4 Inch
