Stainless Steel Butt Hinges Butt Hinges 1–4 Inch for Furniture & Doors
Stainless steel butt hinges with a brushed gold finish, multiple 1″–4″ size options and wide-opening configurations for furniture and compatible wooden door applications.
- 1"–4" Size Options
- 201 / 304 Stainless Steel
- Multiple Hole Configurations
- Up to 270° Opening
PRODUCT SPECIFICATIONS
Butt Hinge
Material
201 / 304 Stainless Steel
Brushed Stainless Steel
1″ / 1.5″ / 2″ / 2.5″ / 3″ / 3.5″ / 4″
Thickness Range
Approx. 0.8–2.0 mm
Pin Structure
Steel Pin
Opening Angle
Up to 270° on Compatible Configurations
Mounting Type
Screw-Fixed
Hole Options
4 / 6 / 8 Holes Depending on Model
Processing
Stamping / Surface Finishing
Applications
Furniture / Cabinets / Boxes / Wooden Doors
OEM Options
Material / Size / Packaging / Selected Specifications
Specifications vary according to size, stainless steel grade, thickness and mounting-hole configuration.
Please confirm the selected model dimensions and material before bulk ordering.

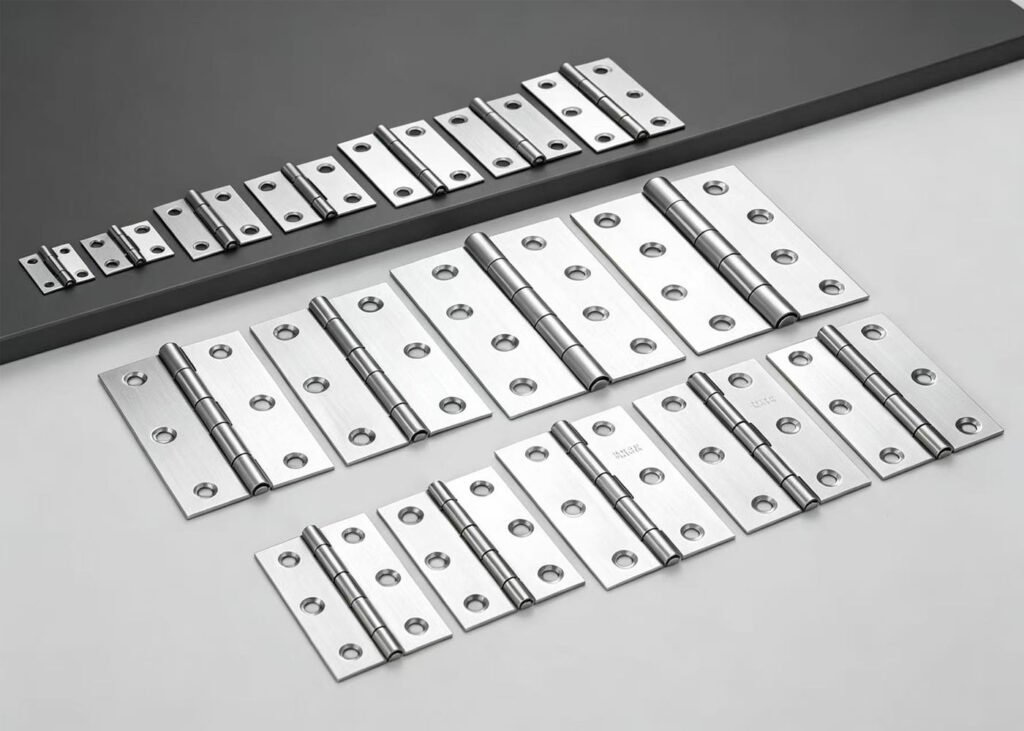

MULTIPLE SIZES, ONE HINGE SERIES
From compact furniture hinges to larger door configurations, the range covers multiple sizes, materials and mounting-hole options.
1"–4" Size Range
Multiple overall dimensions for different installation requirements.
201 / 304 Stainless Steel
Selected configurations are available in different stainless steel grades.
4 / 6 / 8 Hole Options
Mounting-hole quantity varies according to hinge size.
Furniture & Door Applications
Suitable for compatible furniture, boxes, cabinets and wooden doors.

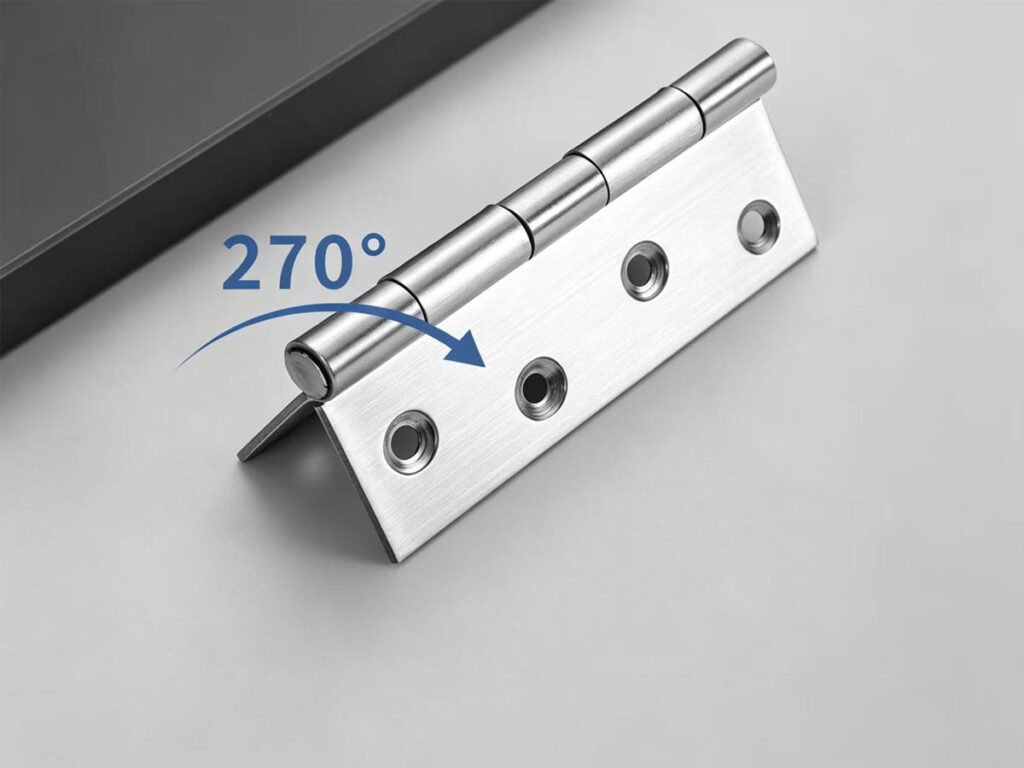

UP TO 270° OPENING
Selected installation configurations allow these butt hinges to support a wide opening angle when sufficient mounting clearance is available.
01 Wide Rotation
Supports compatible wide-opening furniture and door structures.
02 Steel Pin Structure
The two hinge leaves rotate around a central steel pin.
03 Multiple Size Options
Wide-opening configurations are available across selected hinge sizes.
Installation Note: Actual opening angle depends on mounting position, surrounding structure and available clearance.
STAINLESS STEEL CONSTRUCTION
Selected models are available in 201 and 304 stainless steel with a clean brushed surface for furniture and door hardware applications.
201 / 304 Options
Material grade can be selected according to the required model and project specification.
Steel Pin Connection
A central steel pin connects the two hinge leaves and supports rotational movement.
Brushed Stainless Finish
Clean stainless steel appearance for visible furniture and door hardware installations.

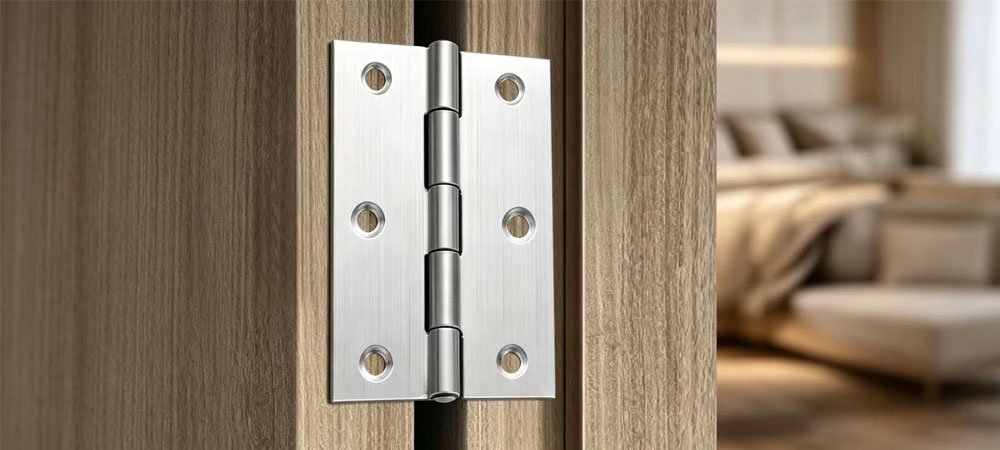

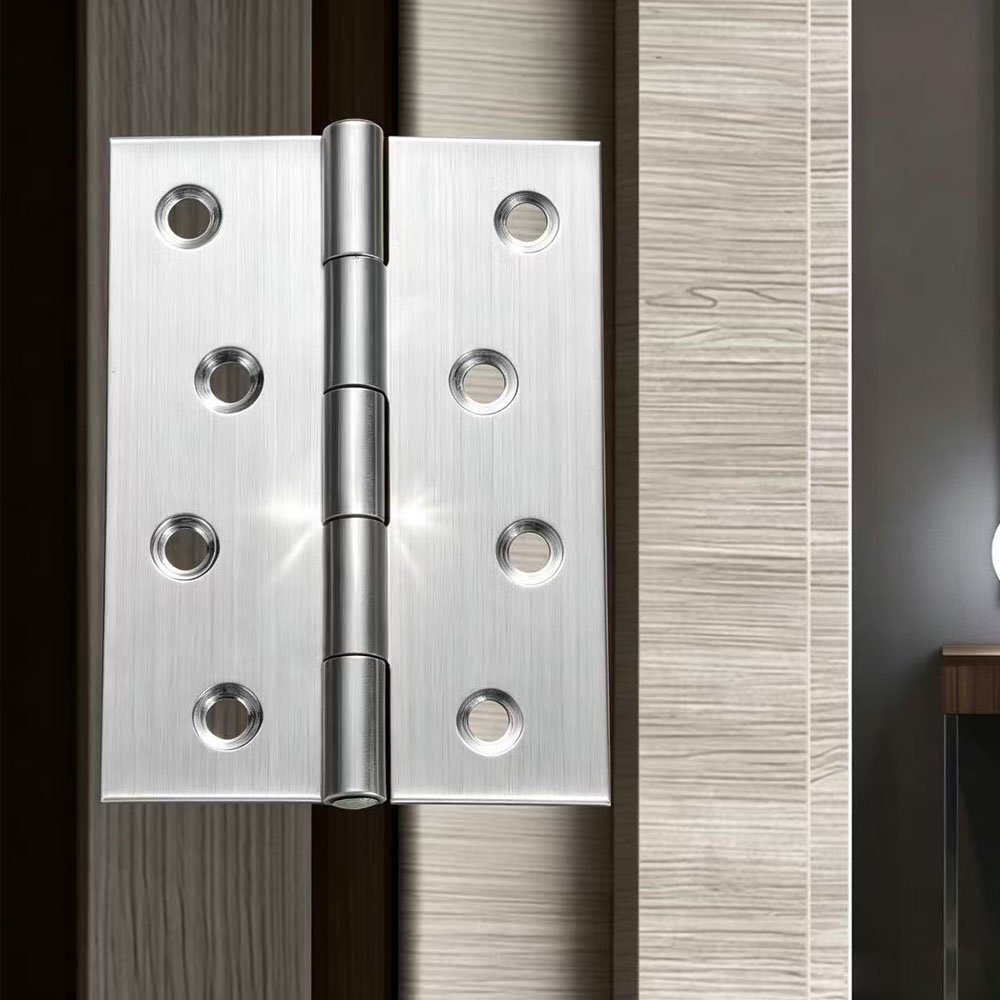

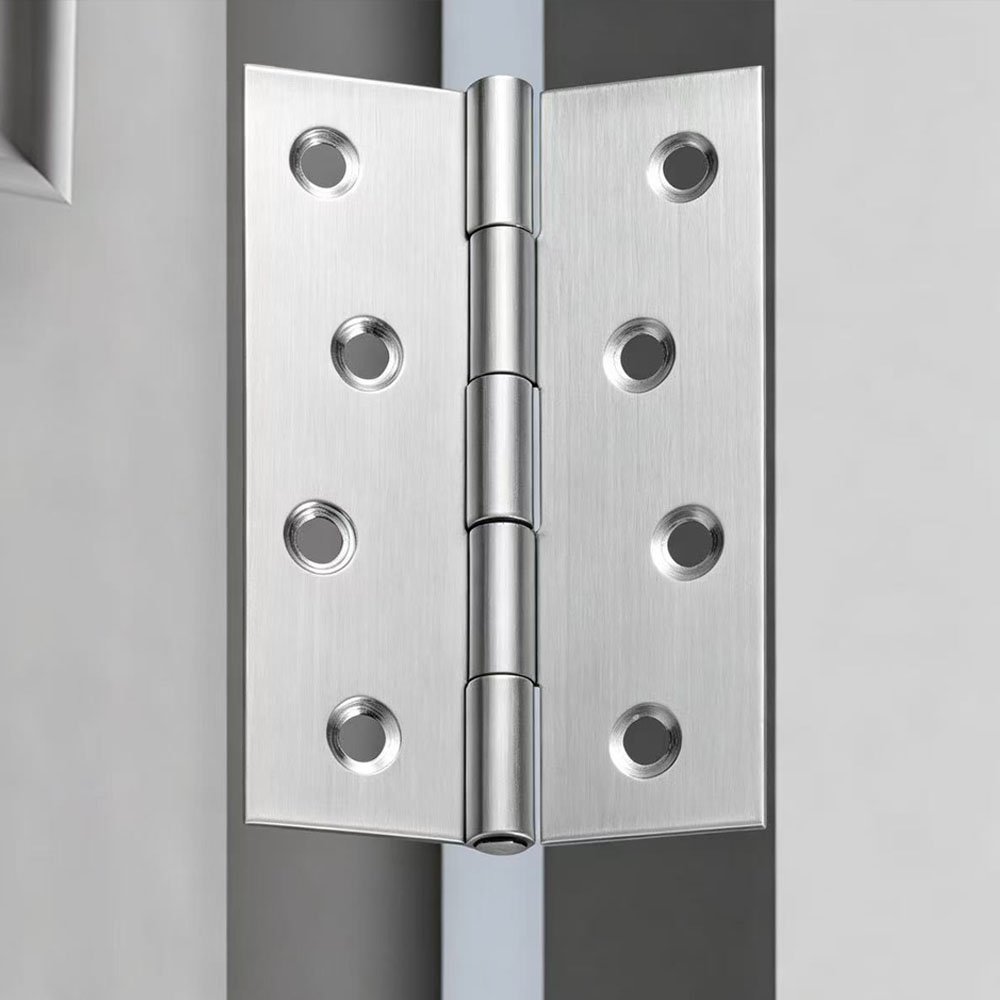

INSTALLED ON FURNITURE & DOORS

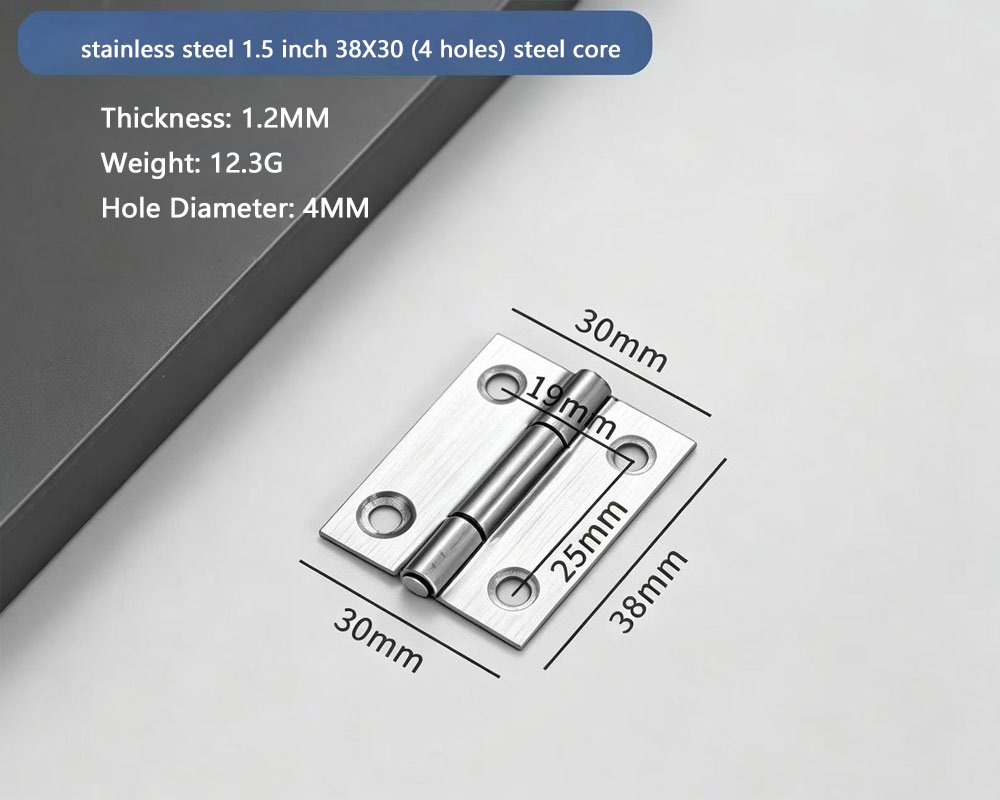

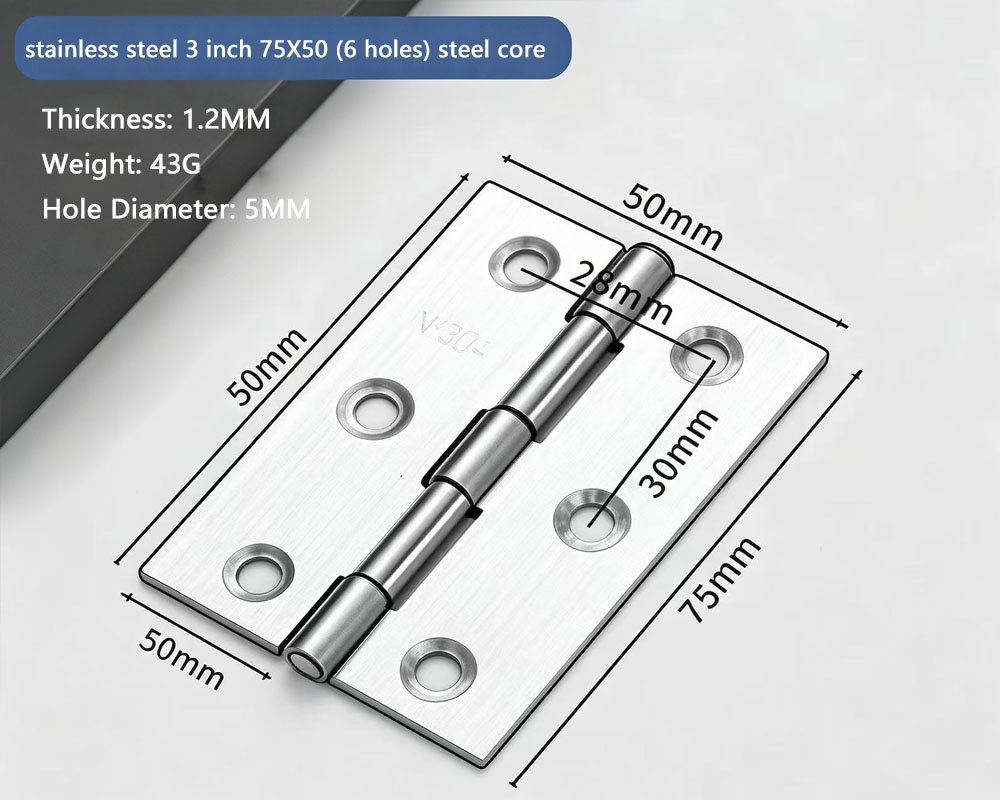

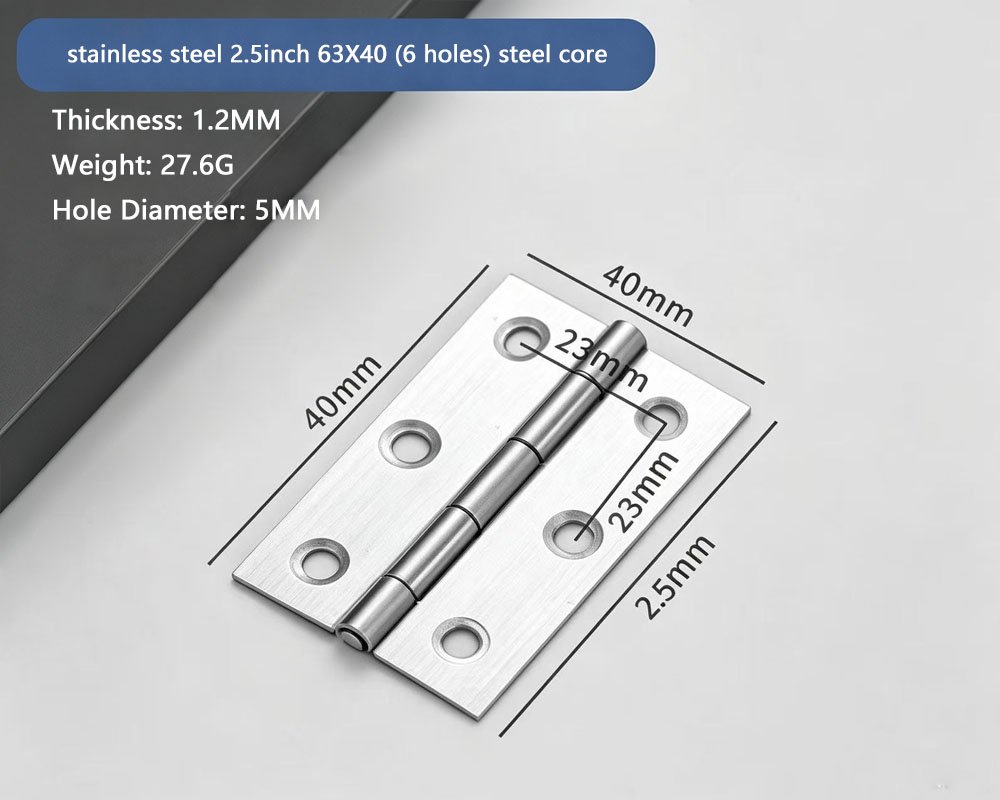

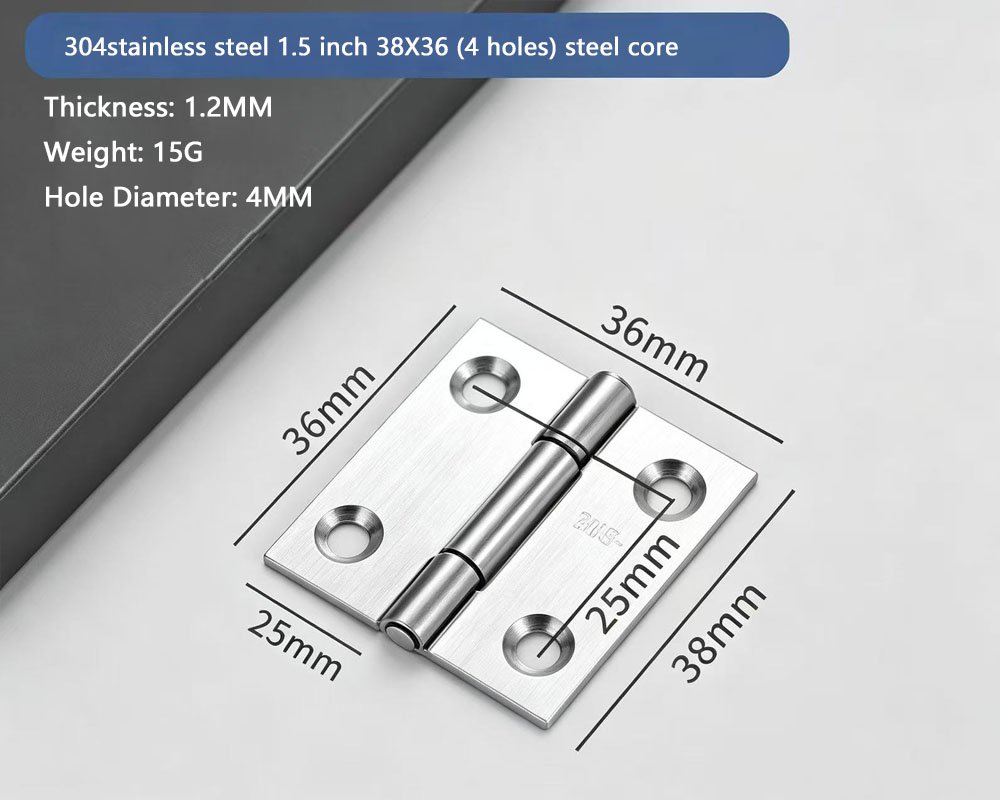

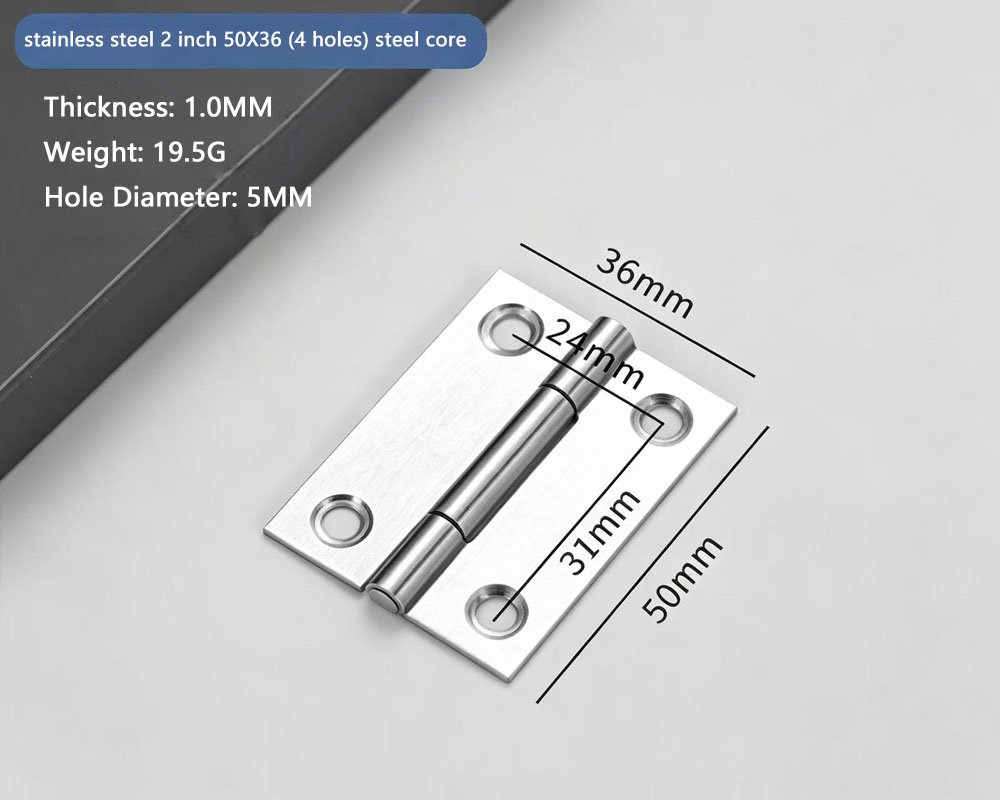

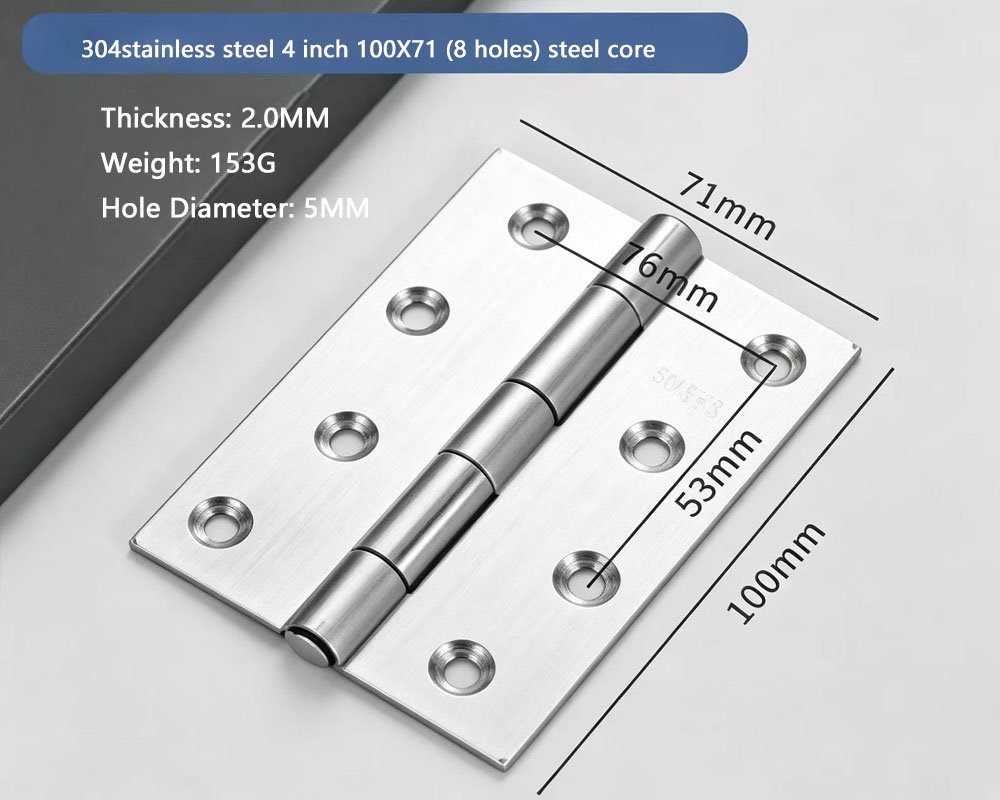

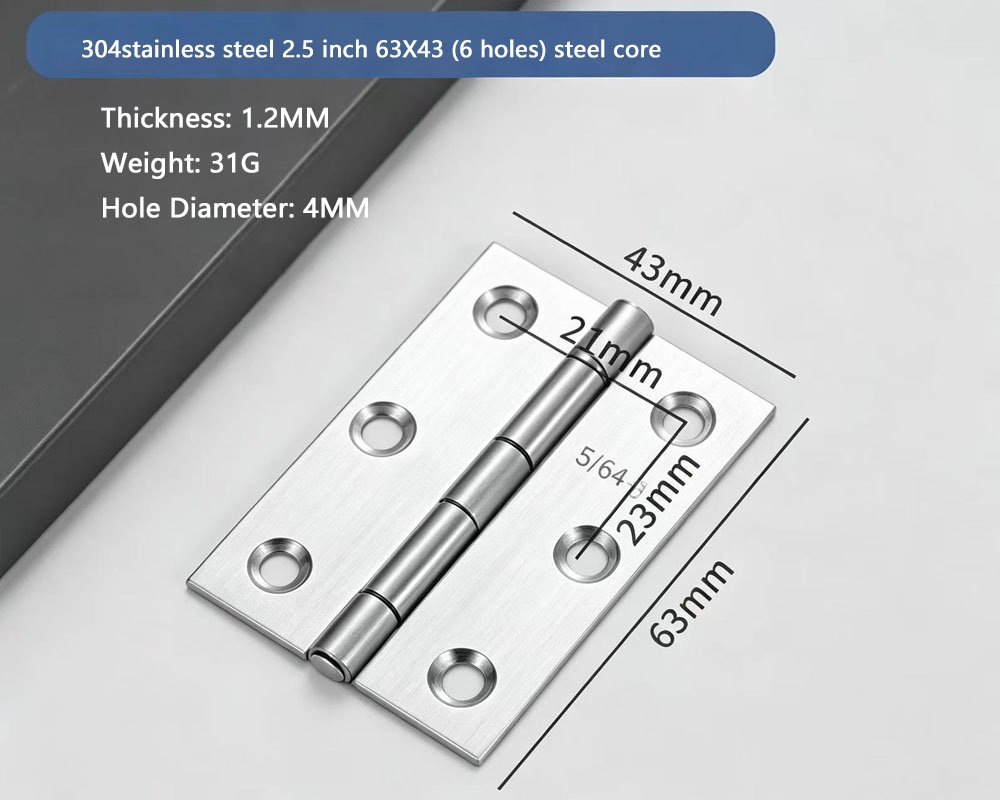

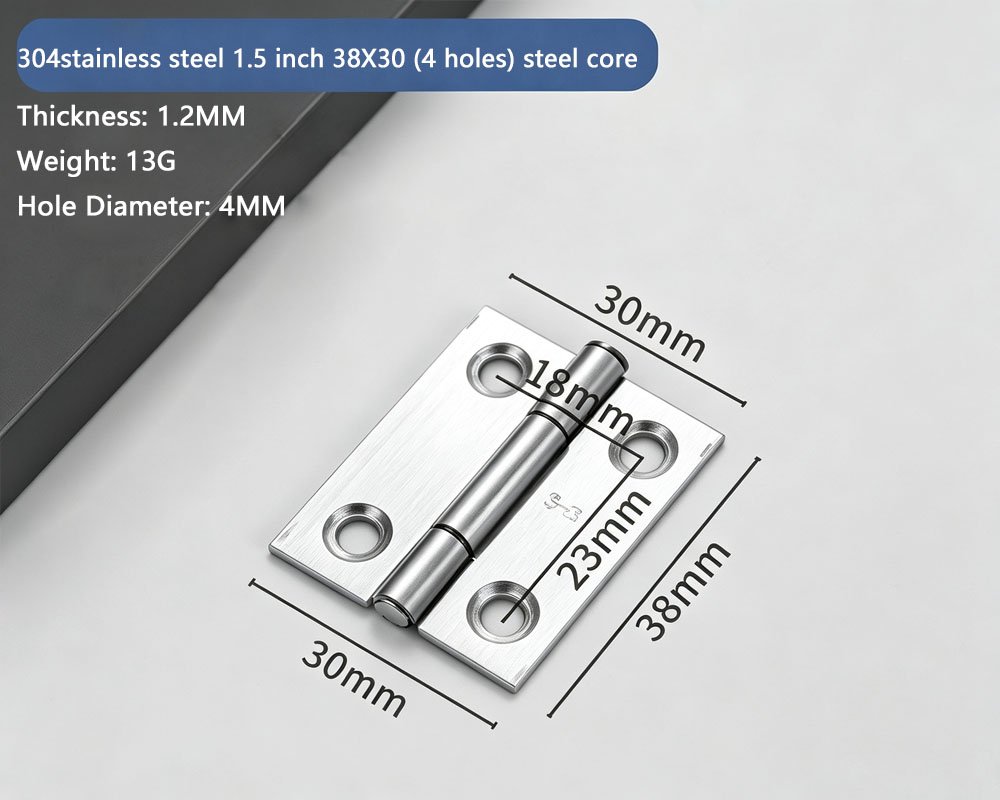

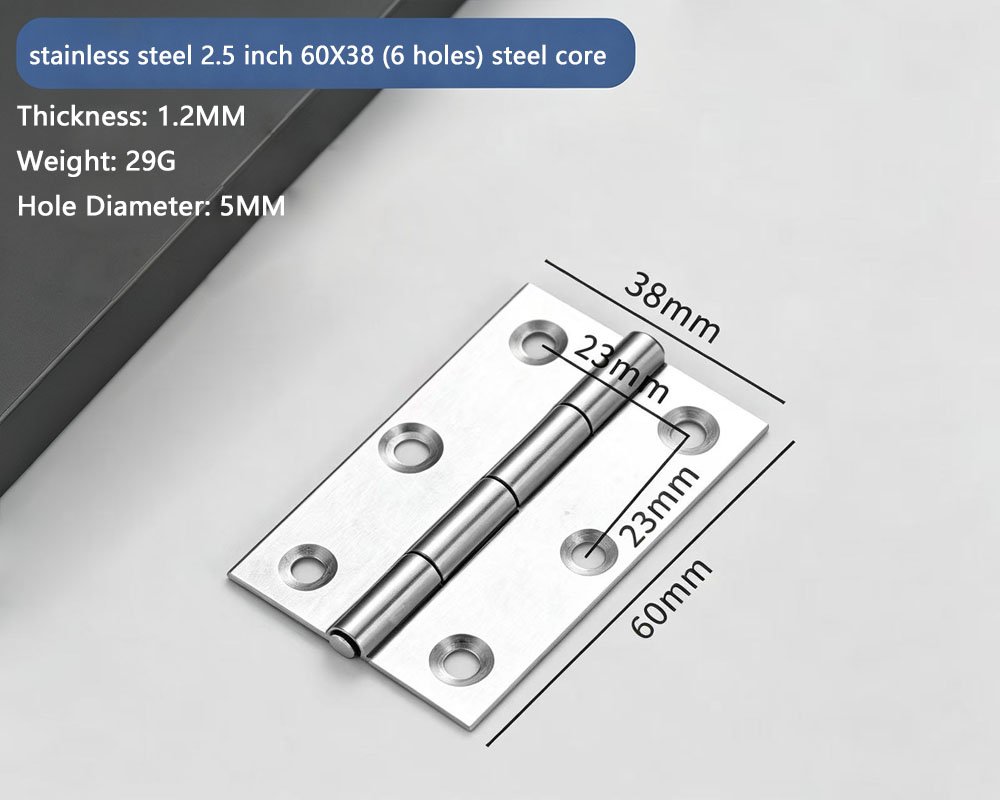

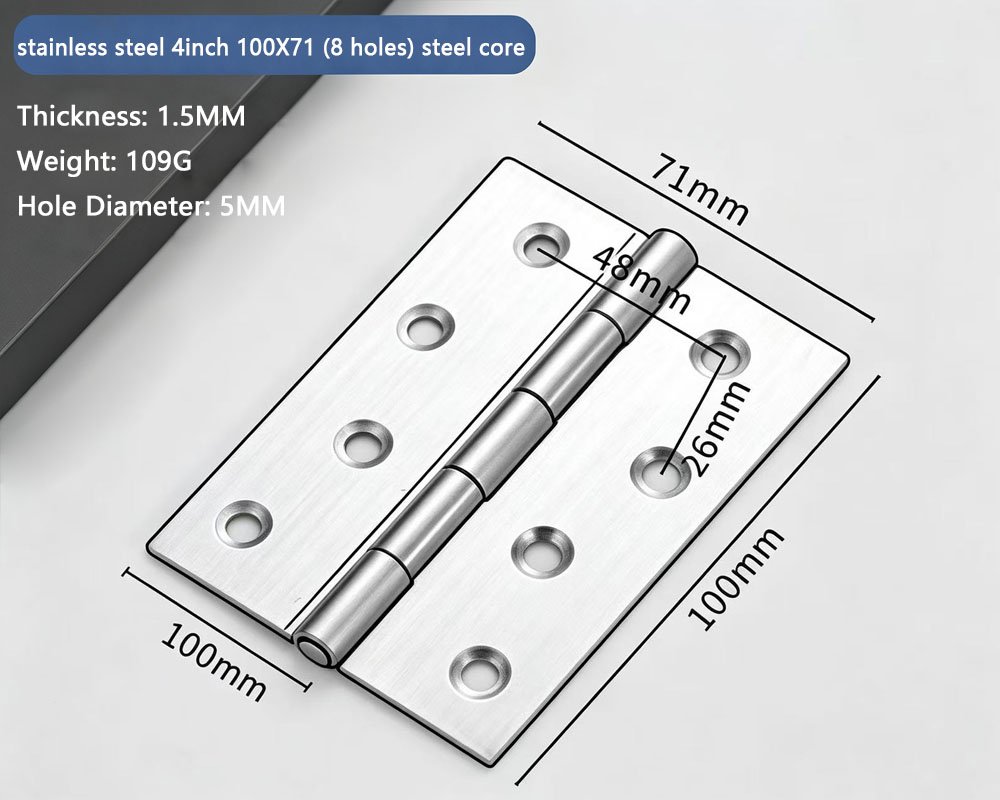

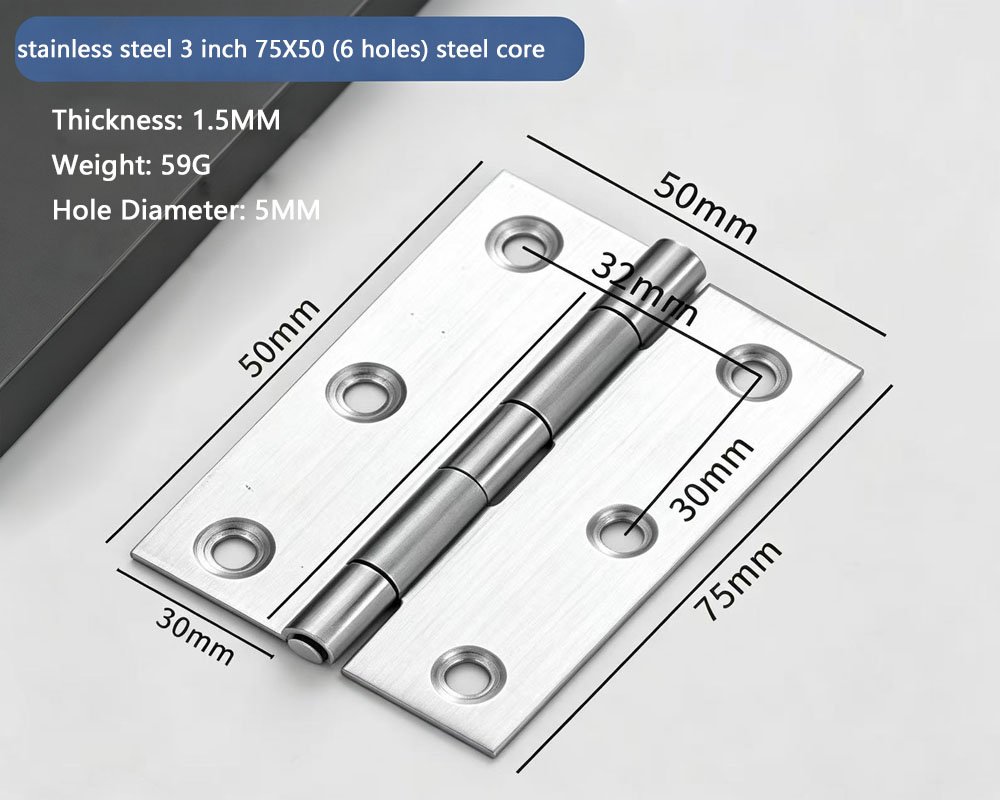

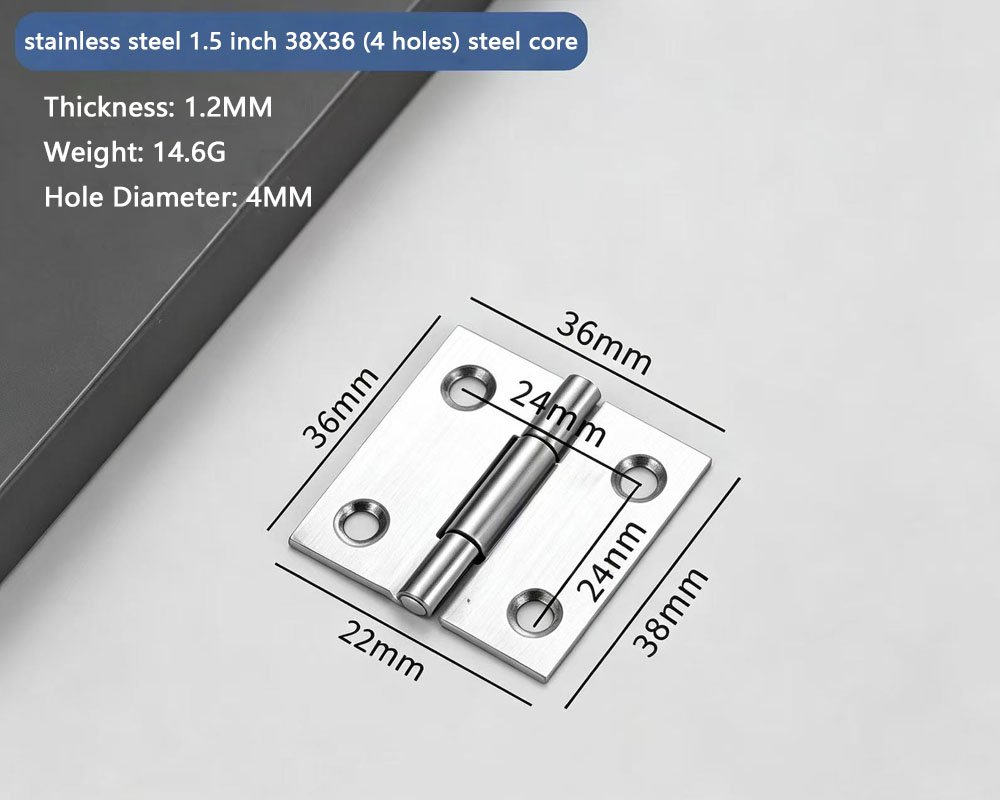

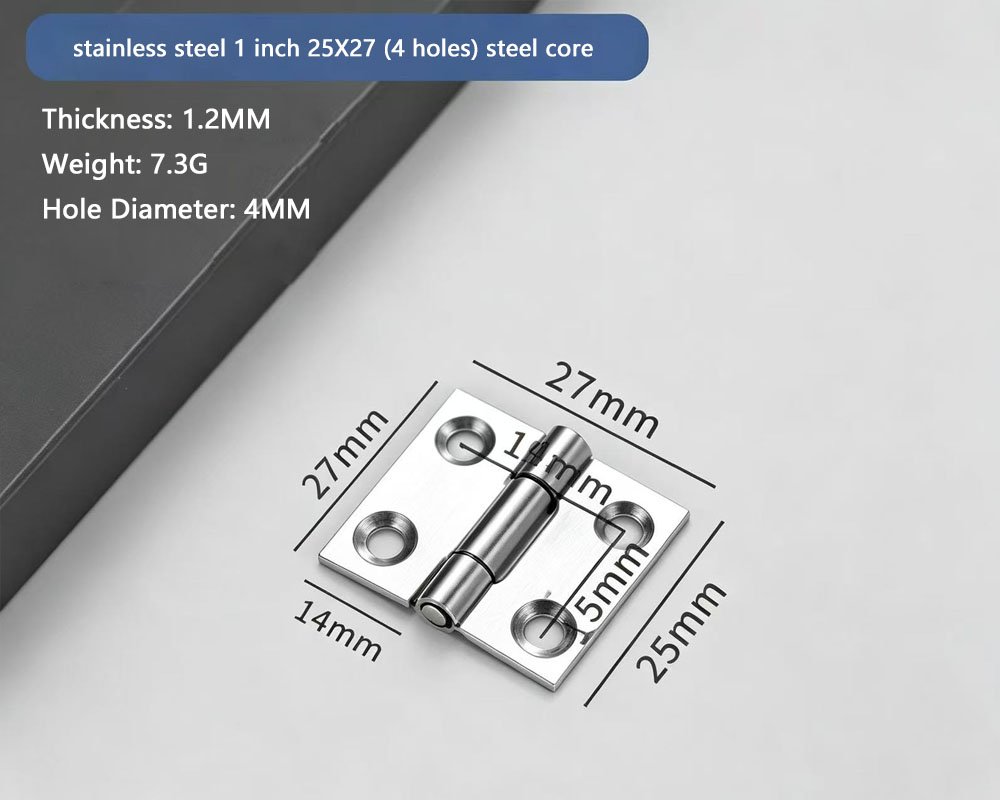

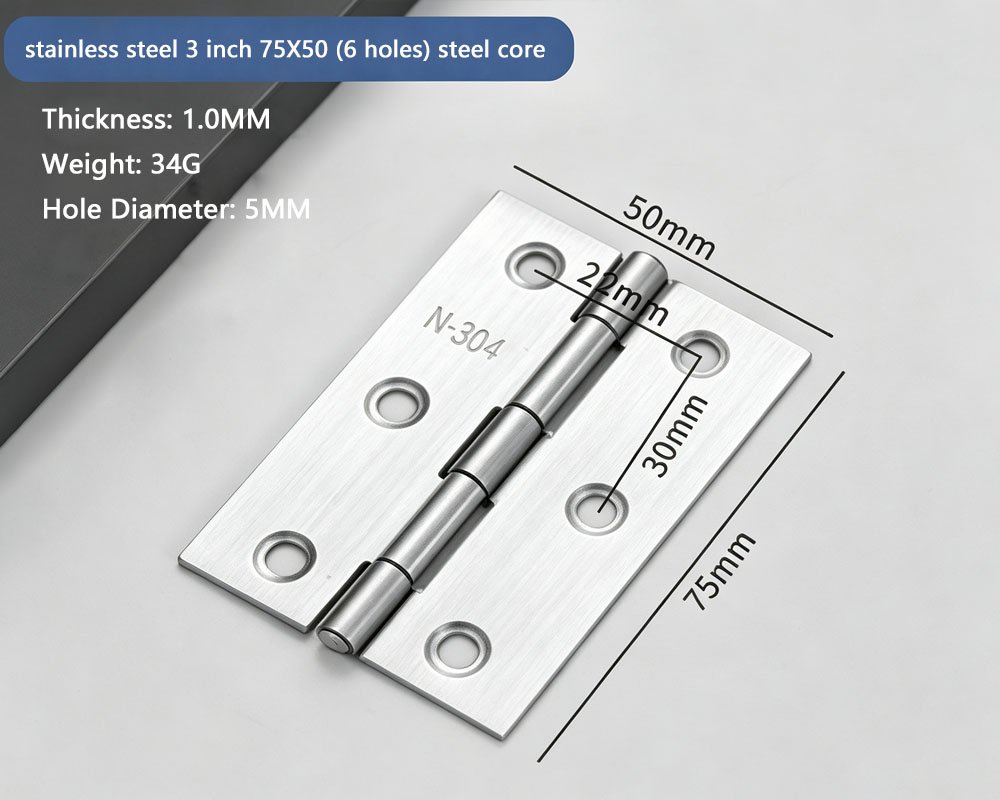

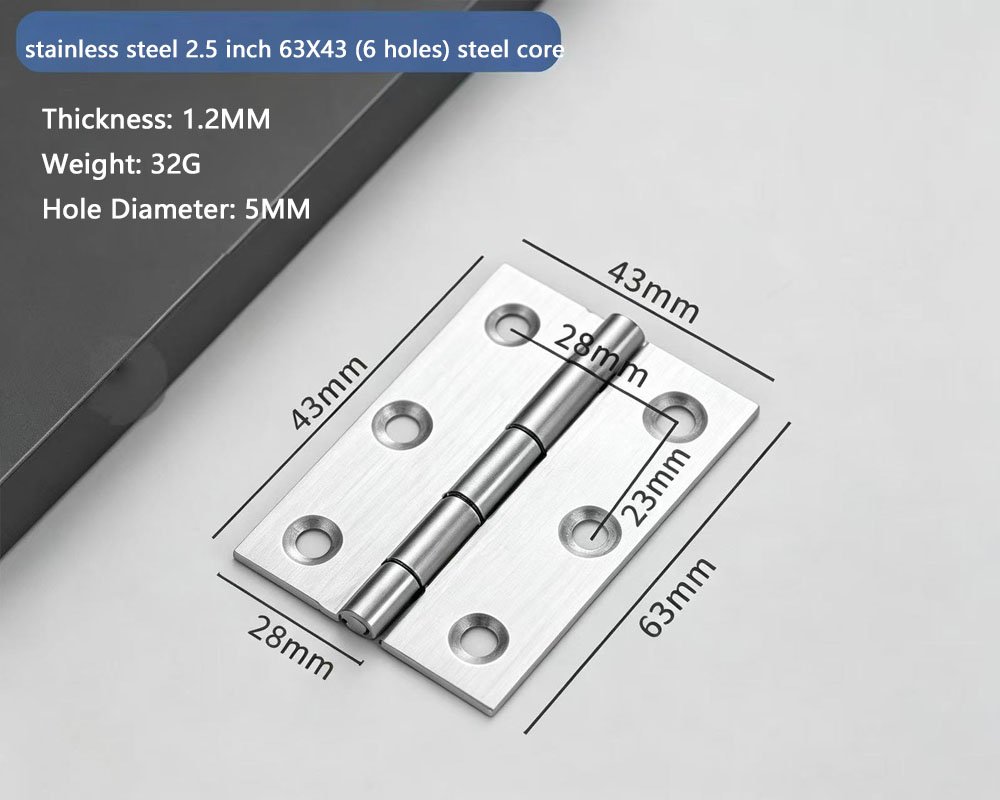

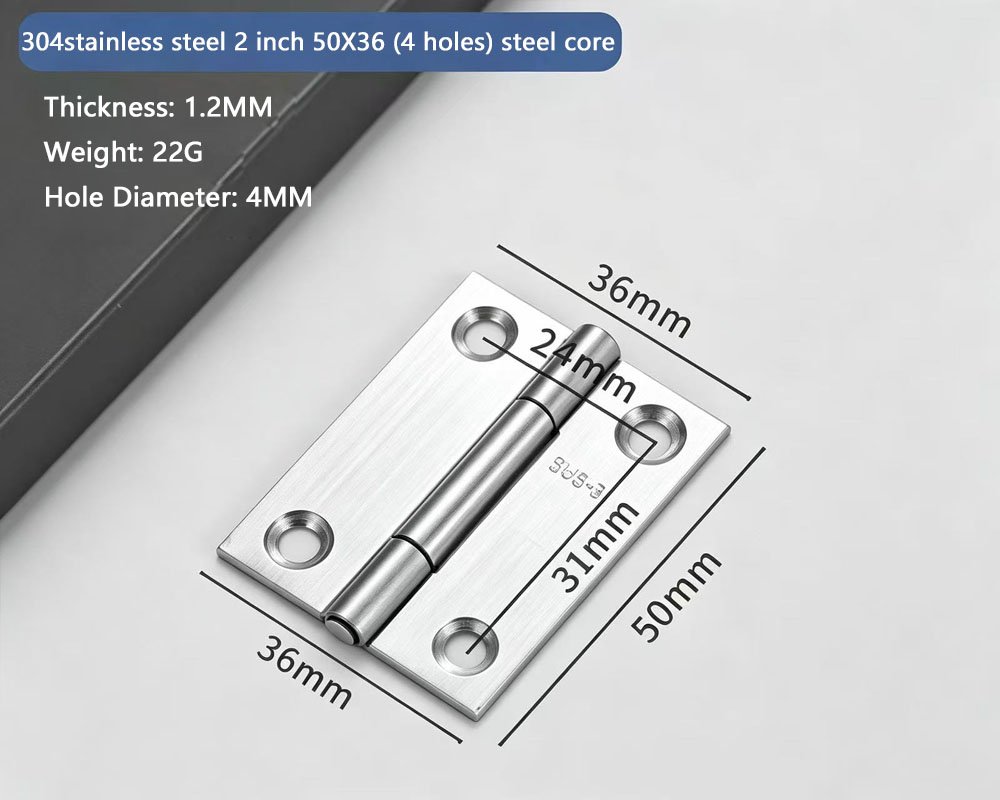

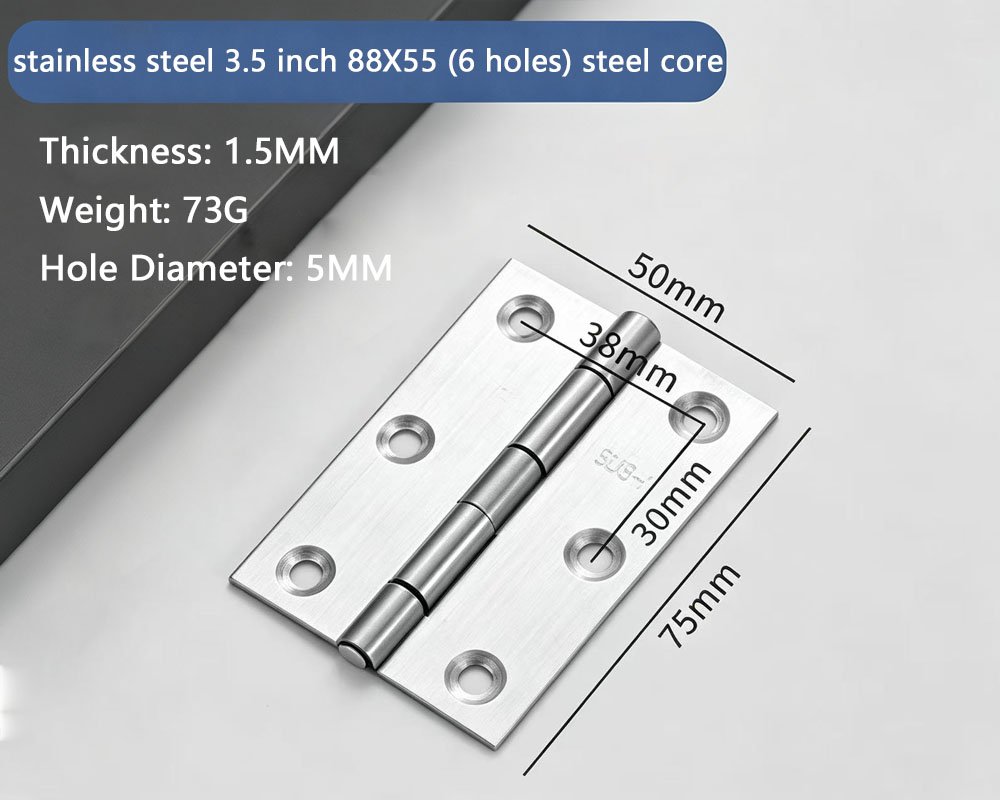

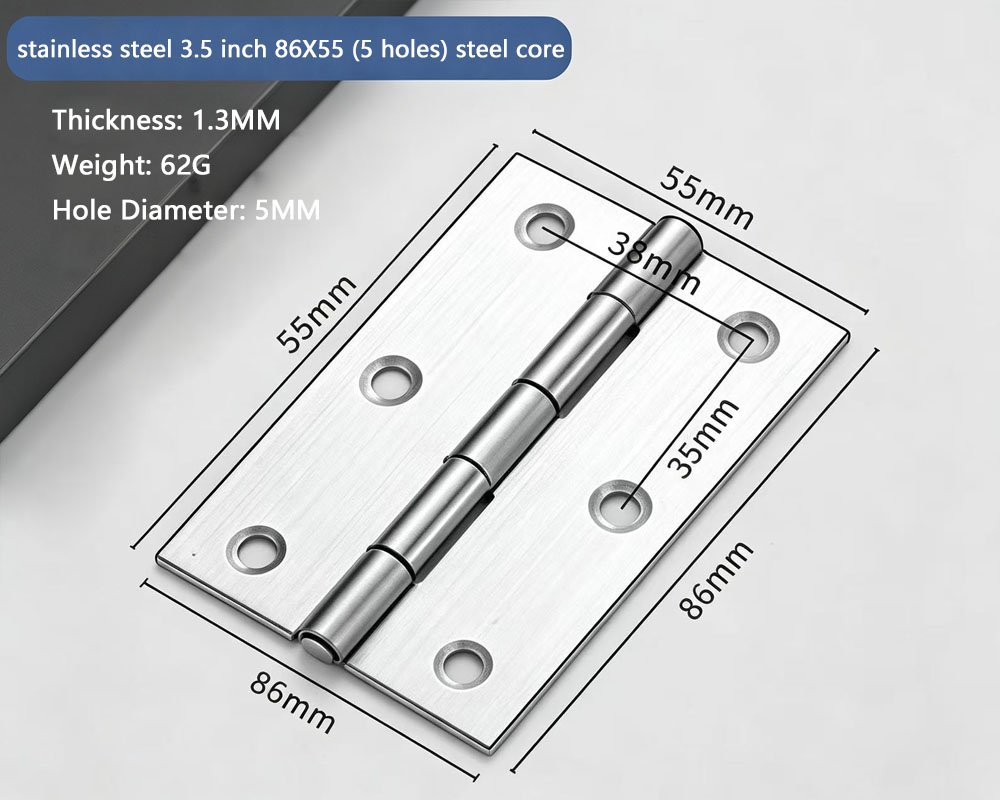

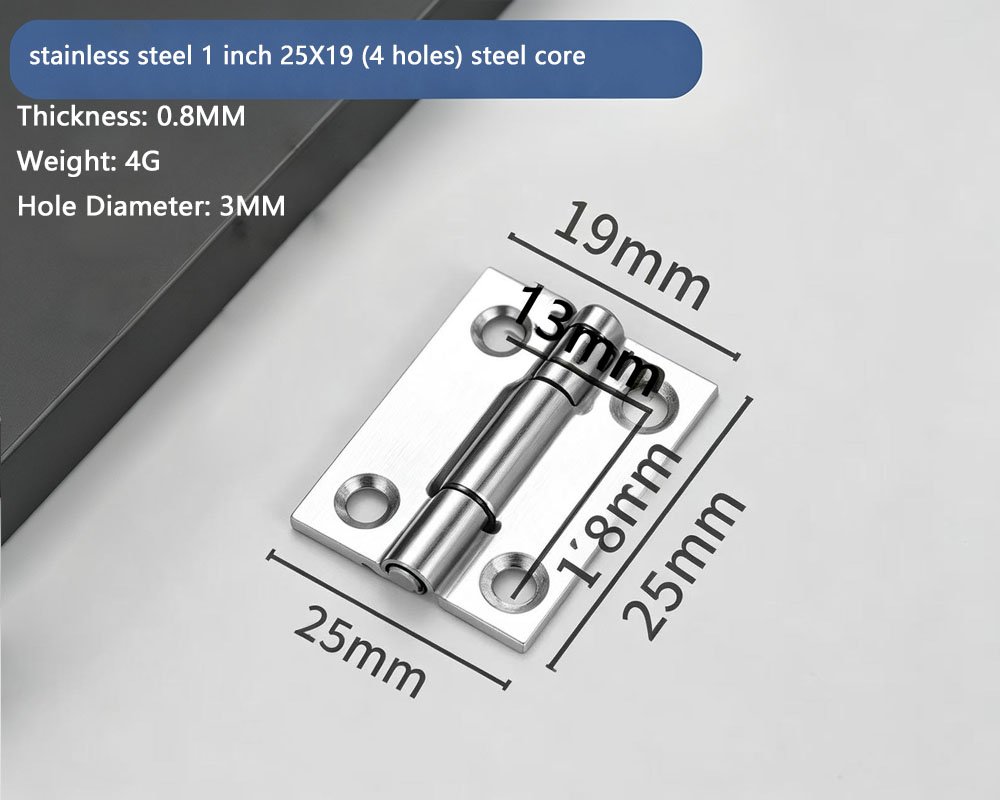

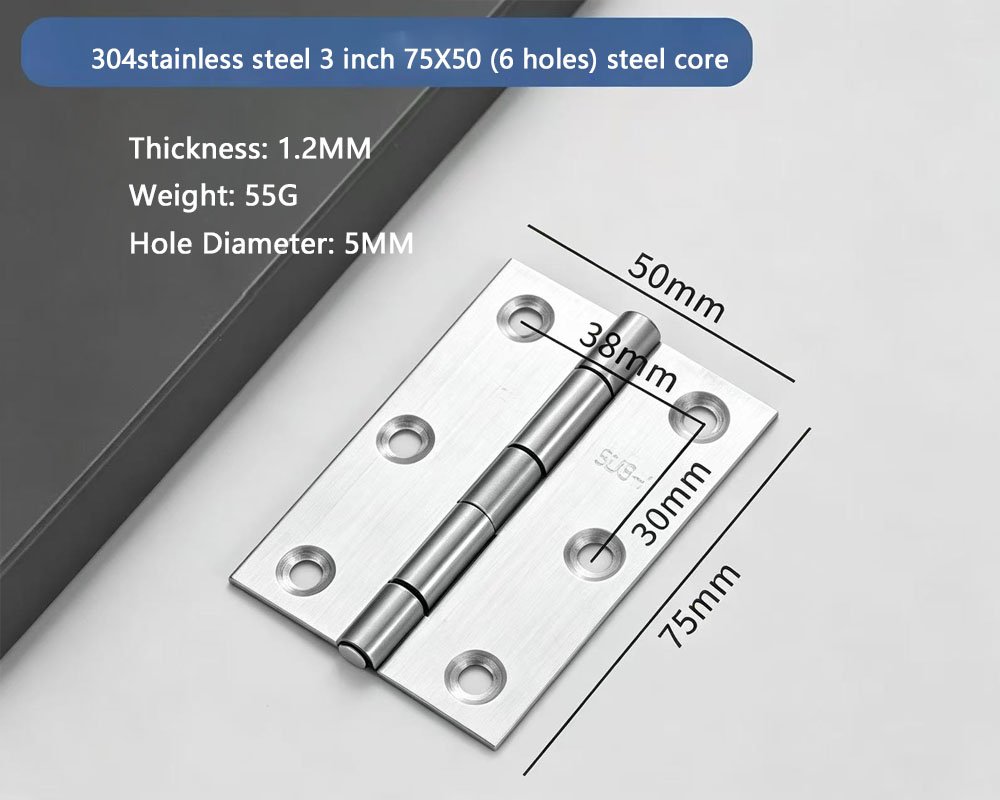

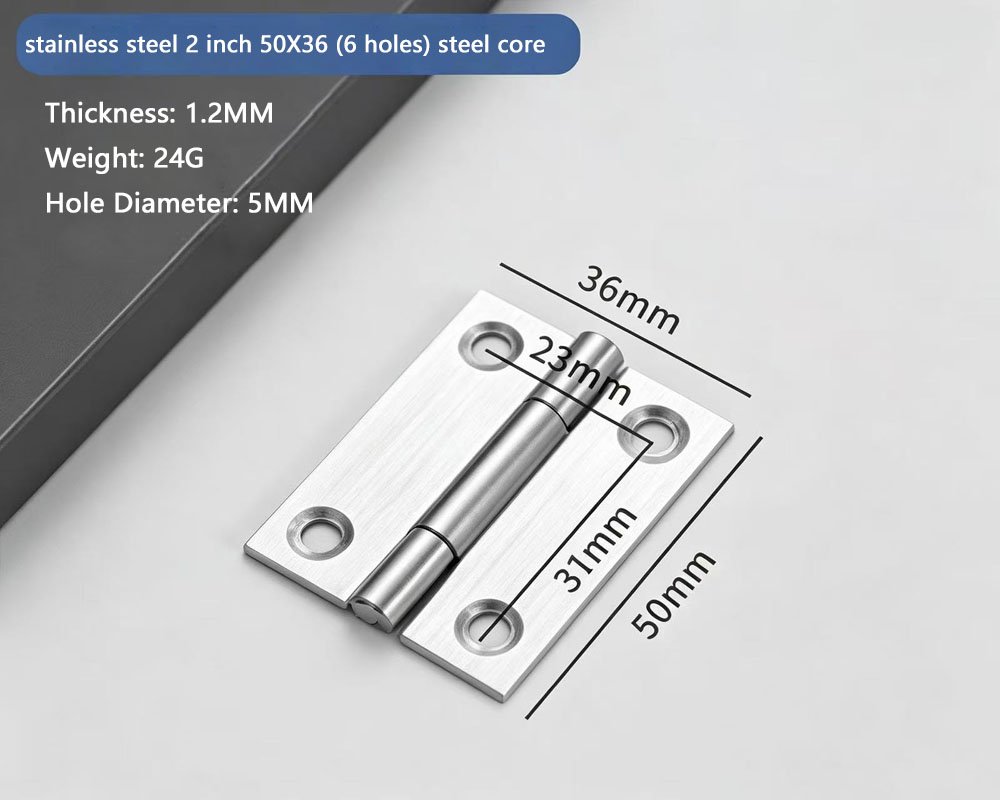

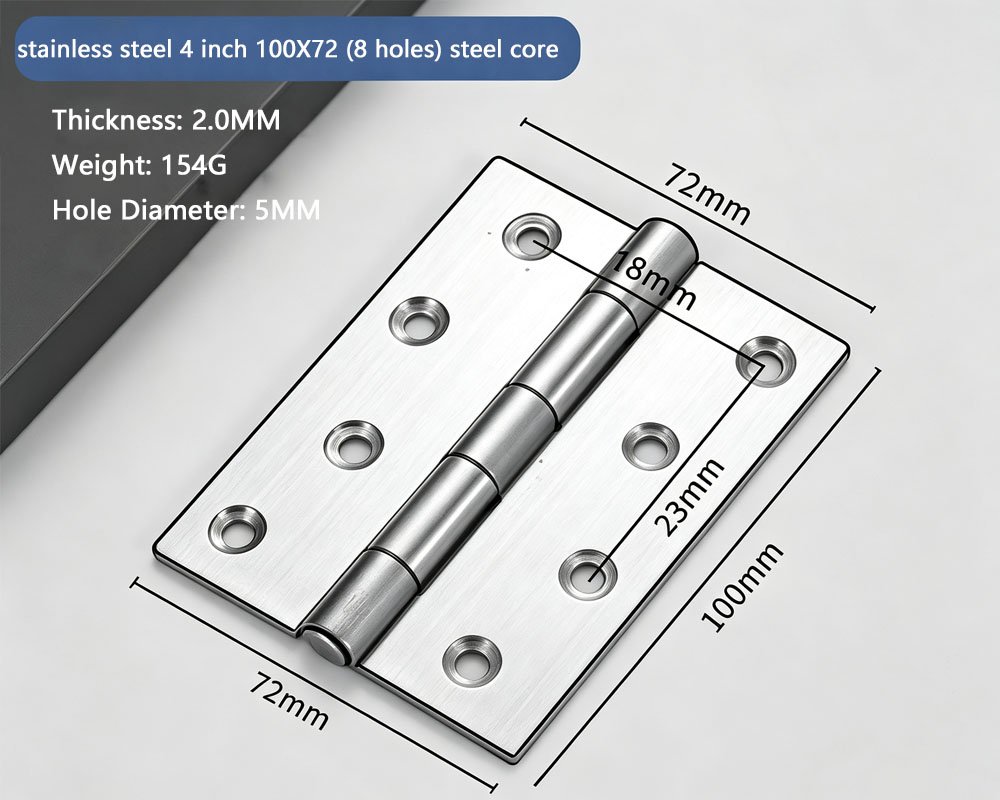

AVAILABLE SIZES & MODEL DIMENSIONS
Compare overall dimensions, thickness, hole diameter and material grade before selecting the required model.
HOW TO SELECT THE RIGHT BUTT HINGE
Confirm four basic specifications before requesting a quotation.
01 Choose the Size
Confirm the required overall hinge height and leaf width.
02 Select the Material
Choose standard stainless steel or SUS304 according to the project specification.
03 Check the Mounting Pattern
Confirm hole quantity, diameter and hole spacing.
04 Send the Order Details
Provide quantity, application and packaging requirements.

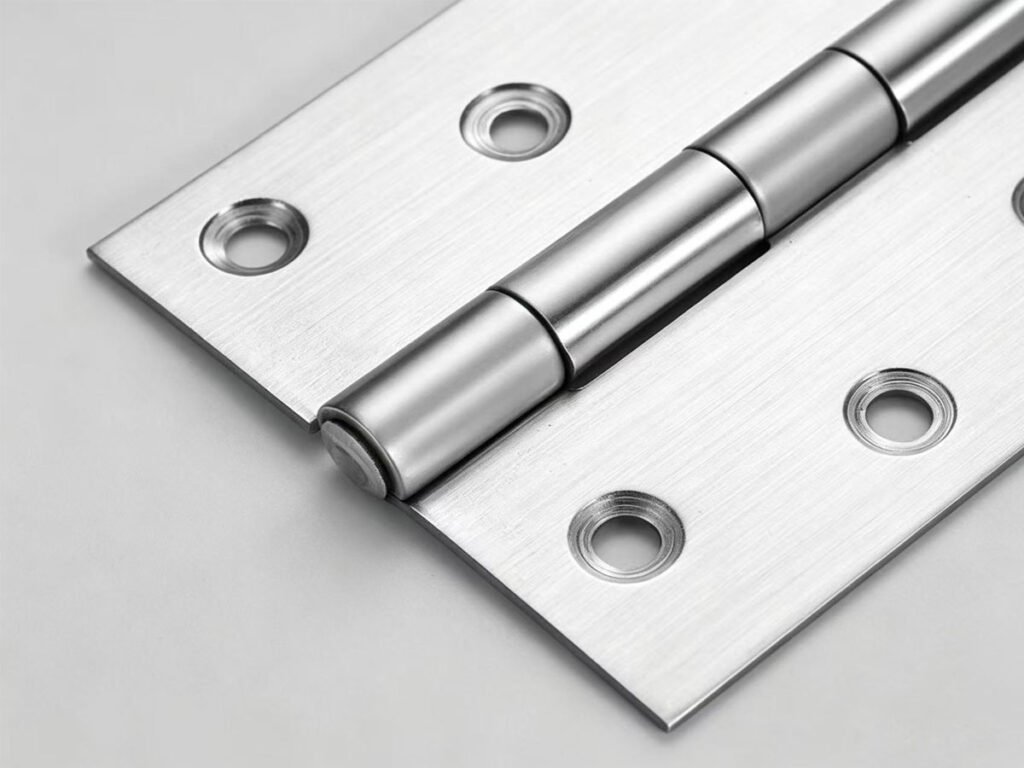

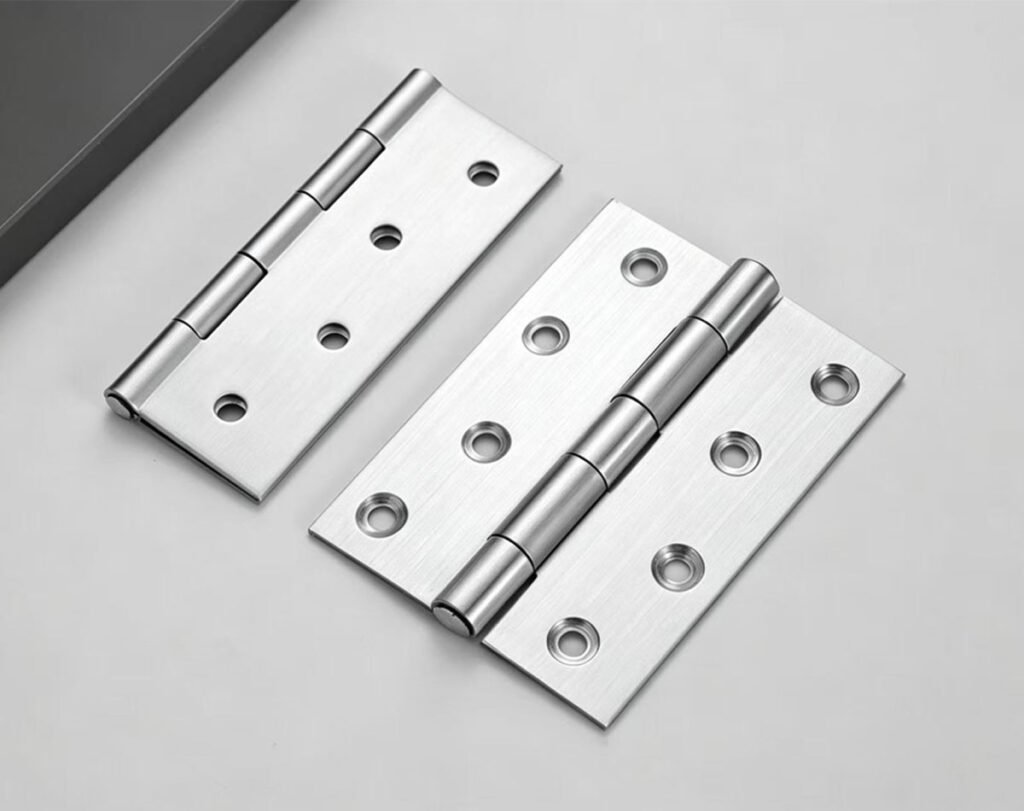

MOUNTING & HINGE DETAILS
Designed with countersunk mounting holes, a central steel pin and multiple fixing patterns for different hinge sizes.
Mounting Details
01 Countersunk Holes
Compatible screw heads can sit closer to the hinge leaf after installation.
02 Steel Pin Structure
The central pin connects the two hinge leaves and supports rotational movement.
03 Screw-Fixed Mounting
Hole quantity and mounting layout vary according to the selected hinge size.
INFORMATION NEEDED FOR A QUOTE
Send the following information so we can confirm the suitable hinge specification more efficiently.
01 Hinge Size
Required overall hinge dimensions or preferred 1″–4″ size.
02 Material
Standard stainless steel or SUS304 according to the project requirement.
03 Thickness
Confirm the required hinge leaf thickness.
04 Application
Furniture, cabinet, wooden box, panel or door application.
05 Order Quantity
Estimated purchasing quantity for the required model.
06 OEM Requirements
Packaging, logo and selected specification requirements.
FAQ
Quick answers about material, sizes, installation and ordering.
PRODUCT & SPECIFICATION
What sizes are available?
The current range covers approximately 1″, 1.5″, 2″, 2.5″, 3″, 3.5″ and 4″ configurations.
Are SUS304 options available?
Yes. Selected models are available in SUS304. Please confirm the required material grade together with the hinge size and specification.
What thickness options are available?
Available thickness varies by model from approximately 0.8 mm to 2.0 mm.
Are different mounting-hole patterns available?
Yes. Selected models use 4, 6 or 8 mounting holes depending on hinge dimensions and specification.
INSTALLATION & ORDERING
Can these hinges open to 270 degrees?
Selected configurations can support opening angles of up to approximately 270 degrees when sufficient installation clearance is available.
Can they be used on wooden doors?
Selected larger configurations can be considered for compatible wooden doors. Door dimensions, approximate weight and hinge quantity should be confirmed before selection.
How many hinges are required per door or panel?
Hinge quantity depends on panel dimensions, approximate weight, selected hinge size and mounting conditions.
What information is needed for a quotation?
Please provide hinge dimensions, stainless steel grade, thickness, application, purchasing quantity and any packaging or OEM requirements.
