304 Stainless Steel Weld-On Lift Off Hinge for Doors and Panels
Removable 304 stainless steel lift off hinge designed for weld-on metal door and panel applications. Available in multiple left/right, pin-core and head configurations for fabrication and B2B project requirements.
- 304 Stainless Steel
- Weld-On Mounting
- Lift-Off Removable Design
- Multiple Configurations
PRODUCT SPECIFICATIONS
304 Stainless Steel Weld-On Lift Off Hinge
Lift-Off / Detachable Flag-Style Hinge
Model
TN-304
304 Stainless Steel
Weld-On
Mounting Holes
No Standard Screw Holes
Handing
Left / Right / Non-Handed Options
Head Options
Standard / Crown Head
Pin Options
Standard Pin / Three-Section Pin
Packaging
1 Pair / 2 Pieces for Listed Models
Leaf Thickness
Varies by Model
Bulk Supply
Available
Dimensions, handing and thickness vary by model. Please confirm the required hinge series before ordering.
AVAILABLE CONFIGURATIONS
Multiple lift-off hinge configurations are available for different handing, pin and head requirements. Select a series below to compare the available options.
18
1 Left + 1 Right
22
1 Left + 1 Right

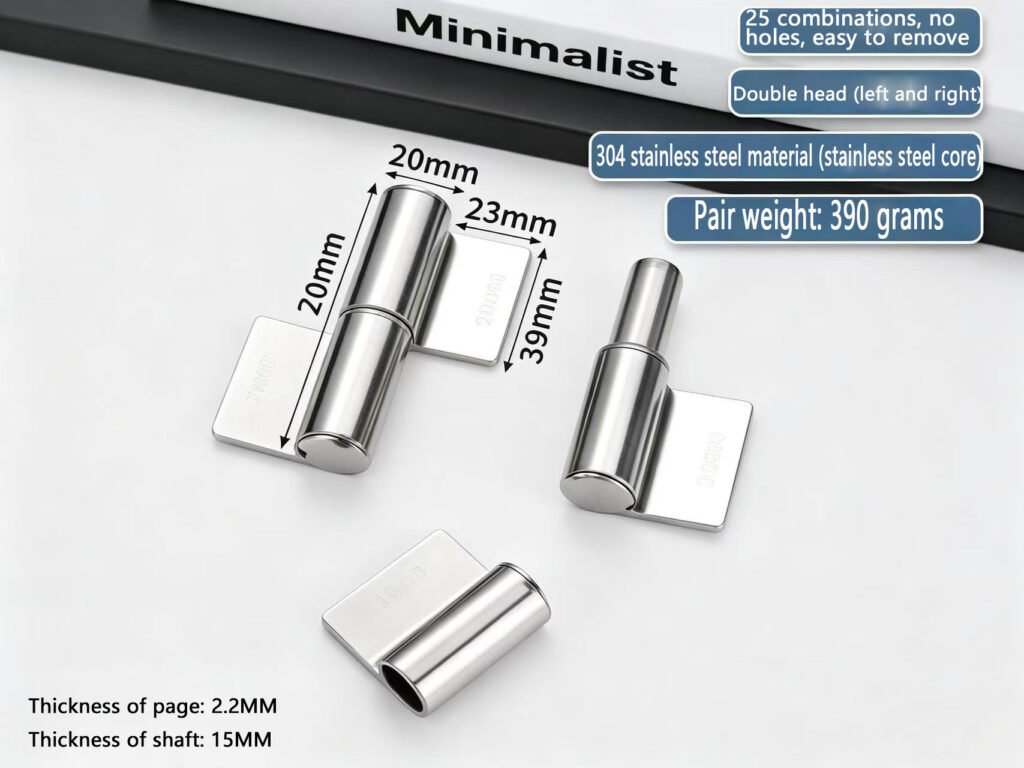

25
1 Left + 1 Right

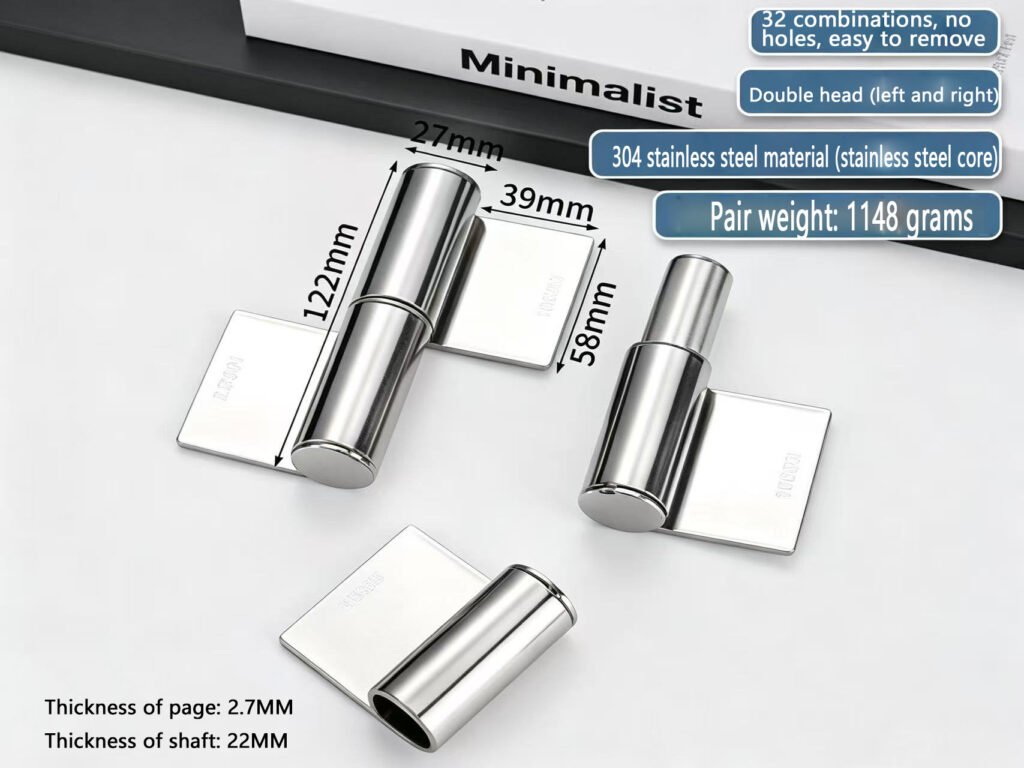

25×100
1 Left + 1 Right
30
1 Left + 1 Right
32
1 Left + 1 Right
22
1 Left + 1 Right
25
1 Left + 1 Right
30
1 Left + 1 Right

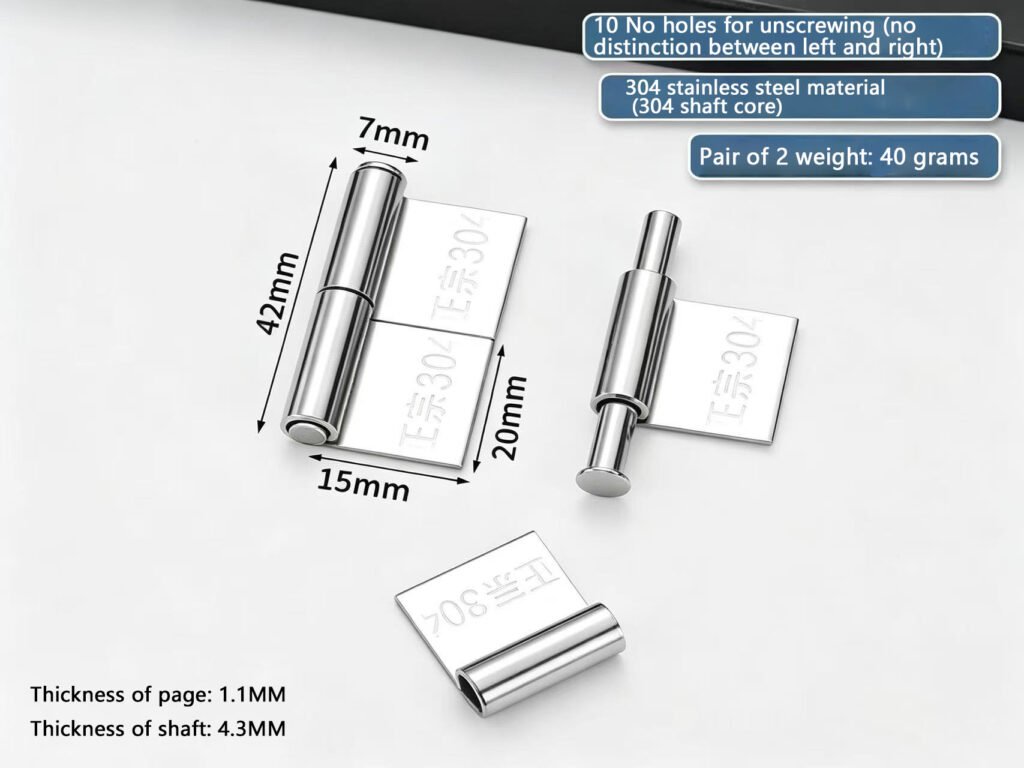

10
Non-Handed

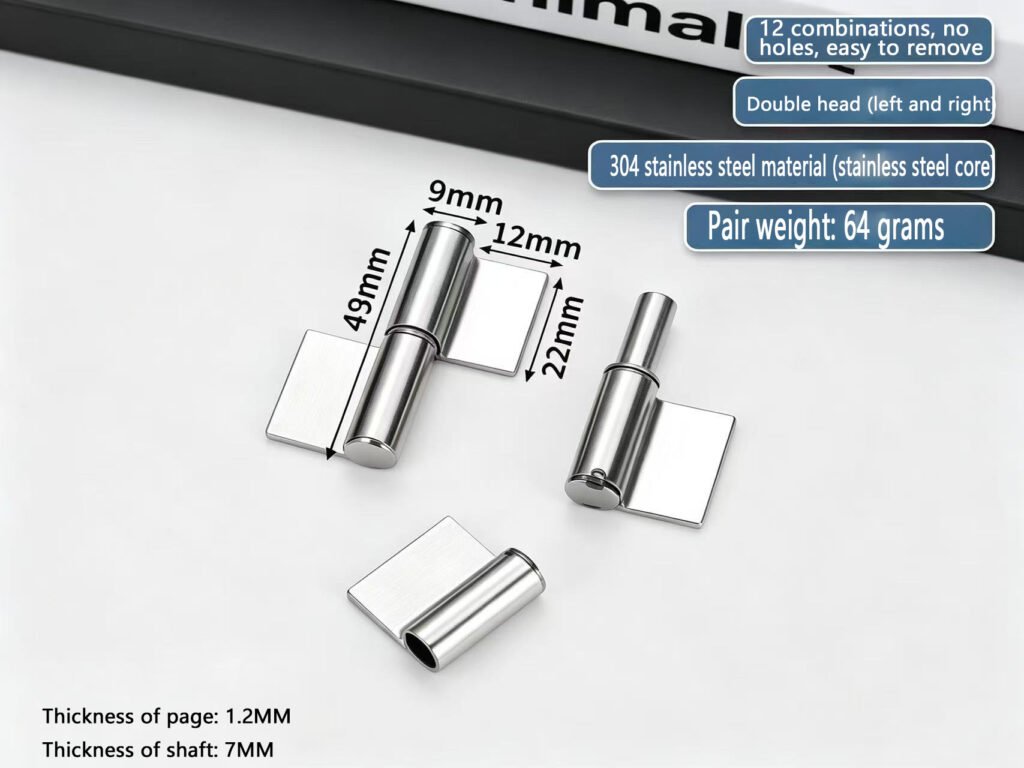

12
Non-Handed

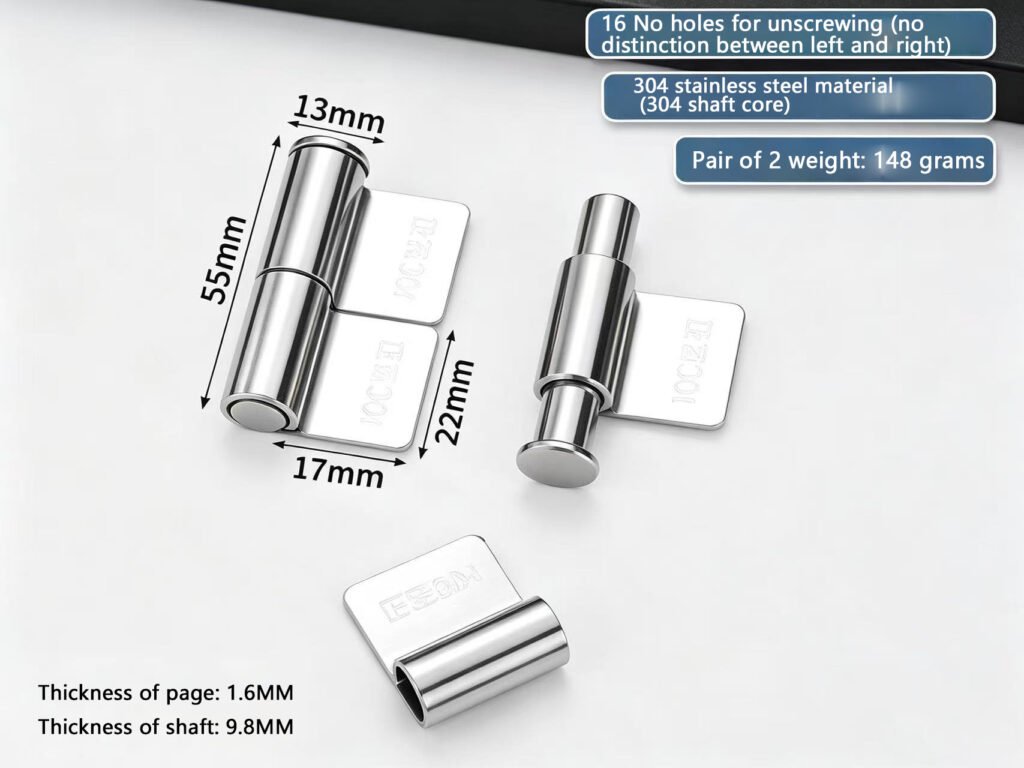

16
Non-Handed
19
Non-Handed
16
Three-Section Pin
19
Three-Section Pin
25
Three-Section Pin
REMOVABLE LIFT-OFF DESIGN
The two-piece hinge structure allows compatible doors or panels to be lifted off vertically after installation, making removal and maintenance easier without dismantling the welded hinge leaves.
- Two-Piece Detachable Structure
- 304 Stainless Steel Pin
- Easy Maintenance Access
Selection Tip: Confirm the required lift-off direction, available vertical clearance and left/right handing before ordering.
WELD-ON NO-HOLE MOUNTING
The plain hinge leaves are designed for direct welding to compatible metal doors, frames and fabricated panels, eliminating the need for conventional screw mounting holes.
- No Pre-Drilled Screw Holes
- Thickened Weld-On Leaves
- Larger Welding Contact Area
- Designed for Metal Fabrication
Final load suitability depends on hinge size, hinge quantity, door weight, welding quality and installation structure.
SMOOTH HINGE MOVEMENT
The hinge pin and barrel are designed with a close-fitting connection to support smooth door movement during opening and closing.
- Close-Fit Pin & Barrel
- Smooth Rotating Movement
- Designed for Repeated Opening
Movement performance may vary according to hinge size, alignment, welding position and door load.
304 STAINLESS STEEL CONSTRUCTION
The hinge body and pin components are manufactured from 304 stainless steel, providing improved corrosion resistance for suitable door, panel and fabricated hardware applications.
- SUS304 Stainless Steel
- Improved Corrosion Resistance
- Suitable for Indoor & Humid Environments
Suitability for highly corrosive, marine or chemical environments should be evaluated separately.

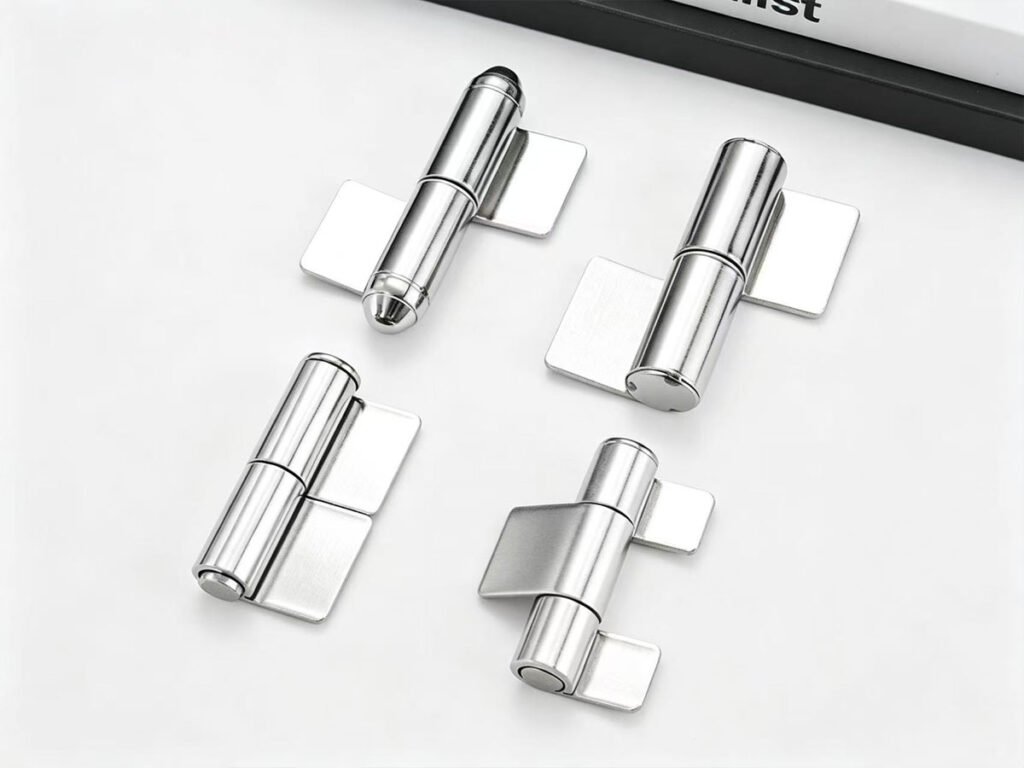

MULTIPLE PIN & BARREL CONFIGURATIONS
Different pin, barrel and head structures are available across the product series for different fabrication requirements.
Standard detachable pin configuration for selected lift-off hinge models.

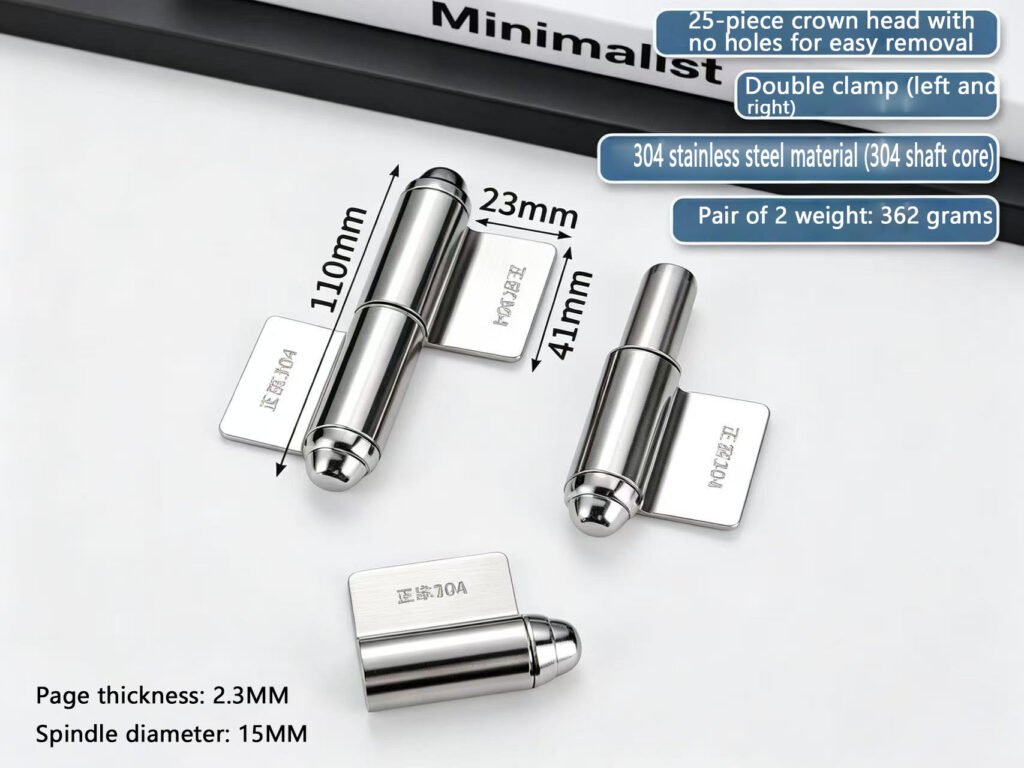

Alternative crown-head design for selected 22, 25 and 30 series.

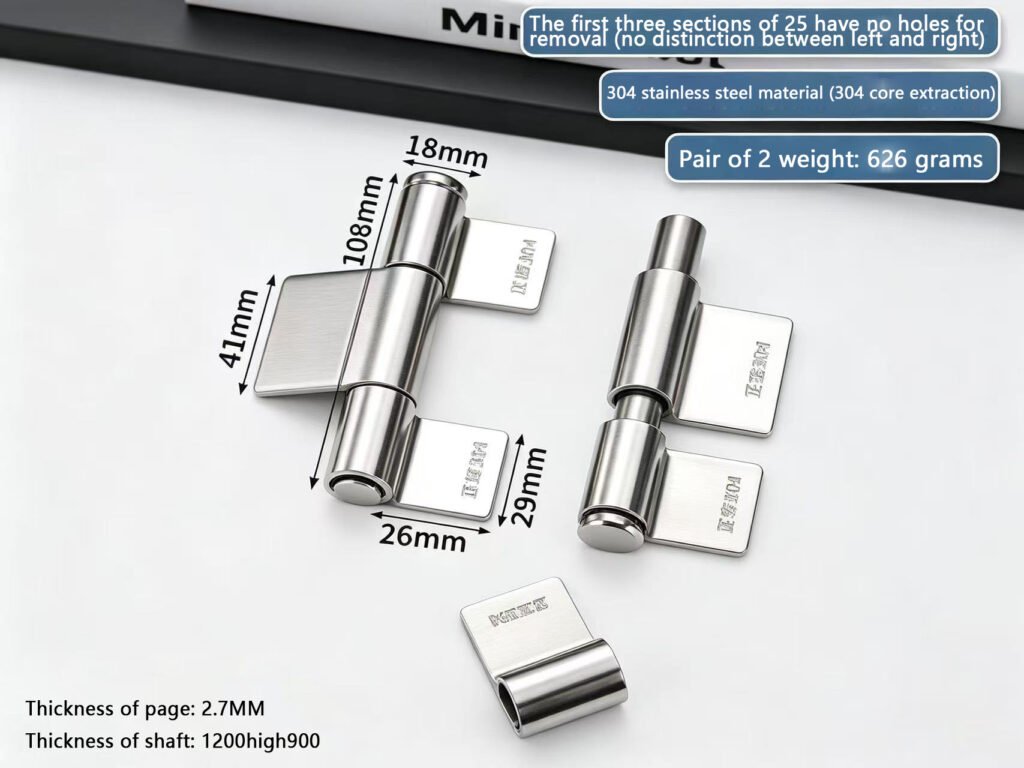

Three-section pin construction available in selected 16, 19 and 25 series.
Selected configurations include an intermediate spacer within the barrel assembly to support stable hinge movement.
AVAILABLE SIZES & MODEL DIMENSIONS
Select a hinge series below to view the corresponding reference dimensions. Specifications vary by model.
MODEL CONFIGURATION GUIDE
SERIES
CONFIGURATION
HANDING
18 / 22 / 25 / 25×100 / 30 / 32
Standard Pair
Left + Right
22 / 25 / 30
Crown Head
Left + Right
10 / 12 / 16 / 19
Standard Pin Core
Non-Handed
16 / 19 / 25
Three-Section Pin
Non-Handed
Detailed dimensions should be confirmed from the corresponding model drawing before welding or mass production.
FAQ
Are all lift off hinge models the same size and thickness?
No. Dimensions, leaf thickness, pin diameter and weight vary by hinge series. Please check the corresponding technical drawing before ordering.
Do all models require left and right handing?
No. Combination models are supplied as left/right pairs, while selected standard pin-core and three-section pin models are non-handed.
